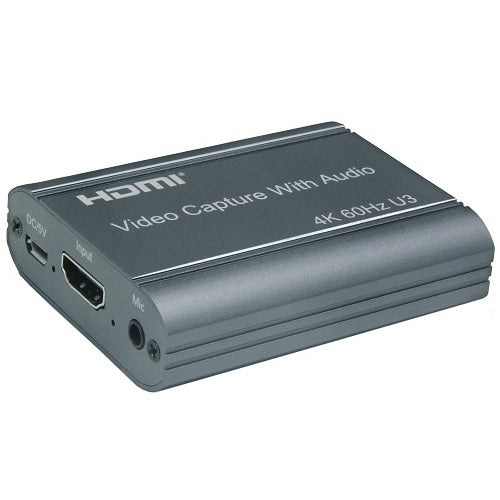

Video Capture with Loop HDMI, USB3.0, 4K 60Hz

HDMI video capture device can capture and separate the HD video and audio signal.It can display the HD signal to the displayer or projector. Also it supports USB storage by computer at the same time. The stripped left and right analog audio 3.5 stereo output. The max resolution can be up to 4K/60Hz.Features: Supports maximum resolution up to 4K@60Hz.Support microphone audio input, 3.5mm stereo output.Support microphone audio and HDMI audio overlay capture.Support the maximum data transfer rate of 18Gbps and the TMDS clock frequency can reach 600MHz.Deep color support.HDMI cable support AWG26 standard: HDMI input up to 8 meters, HDMI output up to 8 meters (for resolution 1080P and below).Supports standard USB 3.0 cable, output up to 1.5m.Supports many recording programs such as VLC, OBS, Amcap, etc.Complies with USB video 1.5 and USB audio 1.0 standards.Support uncompressed (YUY2 1080P@60Hz) acquisition (USB3.0).Specifications: HDMI resolution: up to 4K@60Hz.USB standard: 3.0.Video format support: Deep color.Audio format support: LPCM.Maximum bandwidth: 600MHz.Maximum data transfer speed: 18Gbps.Input cable distance: (1080p resolution) <8m, HDMI cable AWG26.Output cable distance: (1080p resolution) <8m, HDMI cable AWG26, <1.5m USB3.0.Maximum operating current: 0.7A/5VDC.Operating temperature: -10°C~+55°C.Size: 70x56x19 mm.Weight: 56 g.Warranty: 12 months.
