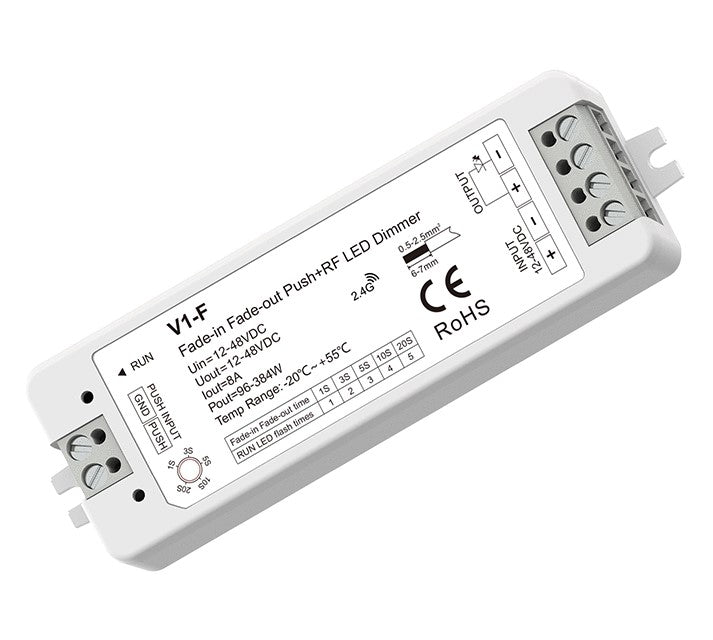

V1-F Fade-in Fade-out LED Dimmer, 12-48V, 1x 8A, Push-Dimm

V1-F constant voltage controller 12-48V DC 1x 8A, for single-color LED strips, Fade-in Fade-out Dimmer, with Push-Dimm function, 1 channel
Features:An advanced single-channel LED dimmer designed for smooth lighting on/off transitions and brightness control. It is suitable for controlling constant voltage lighting devices such as single-color LED strips, constant voltage LED panels, and similar fixtures.This controller features a soft fade-in/fade-out effect, providing a smooth and visually pleasant lighting transition. The fading duration can be set from 1 to 20 seconds via the integrated knob potentiometer.The controller uses advanced PWM (Pulse Width Modulation) digital control technology. It enables smooth dimming or brightening in up to 4096 levels from 0 to 100%, with no flickering or visual interference.Equipped with Push-Dimm functionality: a standard self-resetting button or a self-latching button can be connected to the controller. In both cases, the device supports light on/off control and brightness adjustment. The push input can accept either a positive or negative trigger.The controller is compatible with 2.4 GHz RF remote controls, supporting single-zone or multi-zone lighting control.Built-in protections include overheating, overload, and short-circuit protection, with automatic recovery.This controller is ideal for residential, commercial, or industrial LED lighting where a comfortable, adjustable, and aesthetically pleasing lighting solution is desired.
Technical specifications:Product model: V1-F.Number of channels: 1.Controlled lighting systems: single-color.Operating frequency: RF 2.4GHz.Input voltage: 12V-48V DC.Output voltage: 12V-48V DC.Output current: 8A.Power: 96W-384W.PWM frequency: 2000Hz.Grey scale: 4096 levels.Dimming range: 0-100%.Dimming curve: logarithmic.Fading speed: 1s / 3s / 5s / 10s / 20s.Operating distance: up to 30m (open area).Protection class: IP20 (non-waterproof).Suitable wire cross-section: 0.5–2 mm².Certifications: CE, EMC, RoHS.Operating temperature: -20~+55°C.Dimensions: 114 x 38 x 26 mm.Color: white.Weight: 53g.
Warranty: 24 months.
