HiSmart

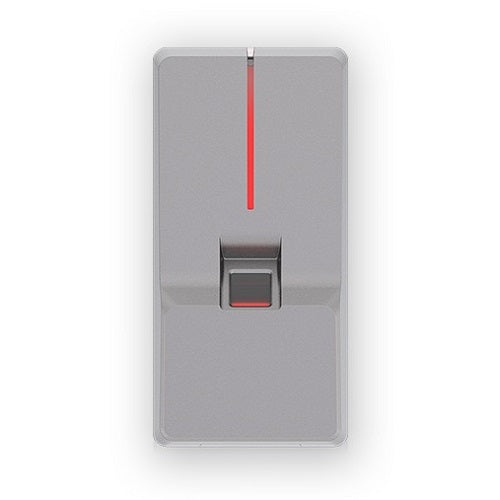

Standalone Fingerprint Access Control + Card Reader, EM/HID/MF/NFC/CPU
€65,91
VAT included. Shipping calculated at checkout.
SKU: TV990382 · EAN: 9990000990382
In stock — ships in 1–2 business days- Free EU shipping over €49
- 24-month warranty included
- 14-day hassle-free returns
Standalone fingerprint access control with card reader sKey 2, EM/HID/MF/NFC/CPU, IP65.
Features:It is a biometrical single entry standalone access control with fingerprint and remote card reader.The access control is designed for outdoor conditions (-20°C~+60°C), with IP65 water and dust resistance, suitable for outdoor or indoor use.Supports 125KHz EM / HID or 13.56MHz Mifare / NFC / CPU cards (optional).Support 4bit / 8bit keypad connection.The door controller can authenticate users with several authentication modes such as fingerprint and card to provide a higher level of security.Remote control included.
Technical specification:Number of users (cards/PINs): 20.000 (21 admin).Fingerprint capacity: 219 users + 21 admin.PIN length: 4-6 digits.Operating frequency: 125KHz (EM/HID cards) / 13.56MHz (Mifare/NFC/CPU cards ISO14443A).Card reader: EM / HID / Mifare / NFC / CPU.Operating voltage: DC 10~14V.Idle current: <50mA.Card reading distance: 2~5 cm.Number of doors supported: 1.Output protocol: 26/66bit Wiegand.Wiring connections: relay, exit button, door sensor, door bell, alarm.Relay: 1 (for lock, No, Nc, Com contacts).Adjustable relay output time: 0-99 seconds.Safety class: IP65.Installation: wall mount.Material: zinc alloy.Operating temperature: -20°C~+60°C.Relative humidity: 0%~95%RH.Dimensions: 170 x 83 x 35 mm.
.Warranty: 24 months.
Features:It is a biometrical single entry standalone access control with fingerprint and remote card reader.The access control is designed for outdoor conditions (-20°C~+60°C), with IP65 water and dust resistance, suitable for outdoor or indoor use.Supports 125KHz EM / HID or 13.56MHz Mifare / NFC / CPU cards (optional).Support 4bit / 8bit keypad connection.The door controller can authenticate users with several authentication modes such as fingerprint and card to provide a higher level of security.Remote control included.
Technical specification:Number of users (cards/PINs): 20.000 (21 admin).Fingerprint capacity: 219 users + 21 admin.PIN length: 4-6 digits.Operating frequency: 125KHz (EM/HID cards) / 13.56MHz (Mifare/NFC/CPU cards ISO14443A).Card reader: EM / HID / Mifare / NFC / CPU.Operating voltage: DC 10~14V.Idle current: <50mA.Card reading distance: 2~5 cm.Number of doors supported: 1.Output protocol: 26/66bit Wiegand.Wiring connections: relay, exit button, door sensor, door bell, alarm.Relay: 1 (for lock, No, Nc, Com contacts).Adjustable relay output time: 0-99 seconds.Safety class: IP65.Installation: wall mount.Material: zinc alloy.Operating temperature: -20°C~+60°C.Relative humidity: 0%~95%RH.Dimensions: 170 x 83 x 35 mm.
.Warranty: 24 months.
