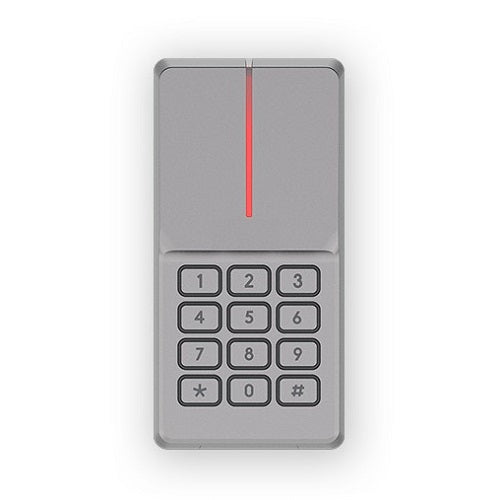

Standalone Access Control with Keypad and Card Reader sKey 2, EM/HID/MF/NFC/CPU
€54,99
VAT included. Shipping calculated at checkout.
SKU: TV990399 · EAN: 9990000990399
In stock — ships in 1–2 business days- Free EU shipping over €49
- 24-month warranty included
- 14-day hassle-free returns
Standalone access control with integrated keypad and card reader sKey 2, EM/HID/MF/NFC/CPU, IP65.
Features:It is a compact single entry standalone access control with keypad and remote card reader.The RFID access control is designed for outdoor conditions (-20°C~+60°C), with IP65 water and dust resistance, suitable for outdoor or indoor use.Supports 125KHz EM / HID or 13.56MHz Mifare / NFC / CPU cards (optional).3 access modes: card, PIN or card+PIN.
Technical specification:Number of users (cards/PINs): 2.000.PIN length: 4-6 digits.Operating frequency: 125KHz (EM/HID cards) / 13.56MHz (Mifare/NFC/CPU cards).Card reader: EM / HID / Mifare / NFC / CPU.Operating voltage: DC 12~24V.Idle current: <50mA.Card reading distance: 2~5 cm.Number of doors supported: 1.Output protocol: 26/37bit Wiegand.Wiring connections: relay, exit button, door sensor, door bell, alarm.Relay: 1 (for lock, No, Nc, Com contacts).Adjustable relay output time: 0-99 seconds.Safety class: IP65.Installation: wall mount.Material: zinc alloy.Operating temperature: -20°C~+60°C.Relative humidity: 0%~95%RH.Dimensions: 170 x 83 x 26 mm.
.Warranty: 24 months.
Features:It is a compact single entry standalone access control with keypad and remote card reader.The RFID access control is designed for outdoor conditions (-20°C~+60°C), with IP65 water and dust resistance, suitable for outdoor or indoor use.Supports 125KHz EM / HID or 13.56MHz Mifare / NFC / CPU cards (optional).3 access modes: card, PIN or card+PIN.
Technical specification:Number of users (cards/PINs): 2.000.PIN length: 4-6 digits.Operating frequency: 125KHz (EM/HID cards) / 13.56MHz (Mifare/NFC/CPU cards).Card reader: EM / HID / Mifare / NFC / CPU.Operating voltage: DC 12~24V.Idle current: <50mA.Card reading distance: 2~5 cm.Number of doors supported: 1.Output protocol: 26/37bit Wiegand.Wiring connections: relay, exit button, door sensor, door bell, alarm.Relay: 1 (for lock, No, Nc, Com contacts).Adjustable relay output time: 0-99 seconds.Safety class: IP65.Installation: wall mount.Material: zinc alloy.Operating temperature: -20°C~+60°C.Relative humidity: 0%~95%RH.Dimensions: 170 x 83 x 26 mm.
.Warranty: 24 months.
