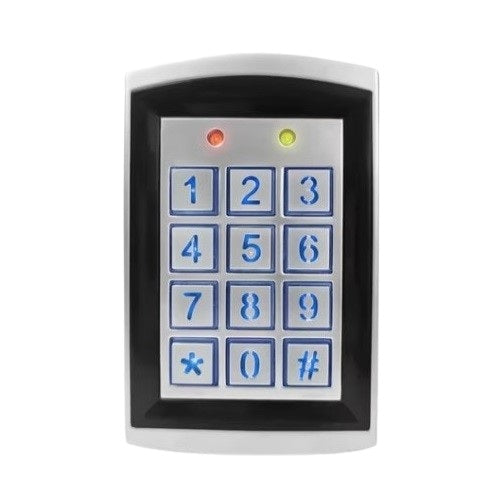

Standalone Access Control with Keypad and Card Reader, 125KHz EM
€45,98
€44,04
VAT included. Shipping calculated at checkout.
SKU: TV993635 · EAN: 9990000993635
In stock — ships in 1–2 business days- Free EU shipping over €49
- 24-month warranty included
- 14-day hassle-free returns
Standalone access control with integrated keypad and card reader, 125KHz EM, IP66.
Features:Compact single entry standalone access control with keypad and remote card reader.The RFID access control is designed for extreme weather conditions (-30°C~+70°C), suitable for outdoor as well as indoor use.Die-cast zinc alloy housing ensures a robust and precisely formed construction that performs reliably under intensive use. Anti-tamper alarm.The controller’s electronics are encapsulated in epoxy resin, providing reliable protection against moisture, dust, vibration, and tampering attempts.Backlit keypad (the backlight can be switched on/off), convenient to use in the dark.Supports two relays (e.g., for a door and a garage gate).Access control in three ways: by card, by PIN code, or by card + PIN.Supports 125 kHz EM cards.
Technical specifications:Number of users (cards/PINs): 1010 (zone1: 1000 cards/PIN; zone2: 10 cards/PIN).Access modes: card, PIN, card+PIN.PIN length: 2-6 digits.Operating frequency: 125KHz (EM).Operating voltage: 12-24 V DC / 12-24 V AC..Idle current: <30mA.Active current: <160mA.Card reading distance: ~5 cm.Number of doors supported: 2.Wiring connections: relay outputs, exit buttons, doorbell.Relay: 2 (No, Nc, Com contacts).Adjustable relay output time: 1-99 seconds (5 seconds default).Safety class: IP66.Installation: wall mount.Connection: Terminal block.Material: die cast zinc alloy.Operating temperature: -30°C~+70°C.Dimensions: 120 x 76 x 22 mm.Weight: 455g.
.Warranty: 24 months.
Features:Compact single entry standalone access control with keypad and remote card reader.The RFID access control is designed for extreme weather conditions (-30°C~+70°C), suitable for outdoor as well as indoor use.Die-cast zinc alloy housing ensures a robust and precisely formed construction that performs reliably under intensive use. Anti-tamper alarm.The controller’s electronics are encapsulated in epoxy resin, providing reliable protection against moisture, dust, vibration, and tampering attempts.Backlit keypad (the backlight can be switched on/off), convenient to use in the dark.Supports two relays (e.g., for a door and a garage gate).Access control in three ways: by card, by PIN code, or by card + PIN.Supports 125 kHz EM cards.
Technical specifications:Number of users (cards/PINs): 1010 (zone1: 1000 cards/PIN; zone2: 10 cards/PIN).Access modes: card, PIN, card+PIN.PIN length: 2-6 digits.Operating frequency: 125KHz (EM).Operating voltage: 12-24 V DC / 12-24 V AC..Idle current: <30mA.Active current: <160mA.Card reading distance: ~5 cm.Number of doors supported: 2.Wiring connections: relay outputs, exit buttons, doorbell.Relay: 2 (No, Nc, Com contacts).Adjustable relay output time: 1-99 seconds (5 seconds default).Safety class: IP66.Installation: wall mount.Connection: Terminal block.Material: die cast zinc alloy.Operating temperature: -30°C~+70°C.Dimensions: 120 x 76 x 22 mm.Weight: 455g.
.Warranty: 24 months.
