HiSmart

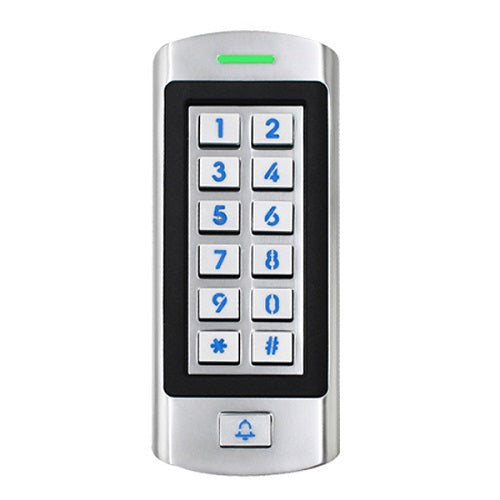

Standalone Access Control with Keypad and Card Reader, 125KHz EM
€42,35
€39,33
VAT included. Shipping calculated at checkout.
SKU: TV993529 · EAN: 9990000993529
In stock — ships in 1–2 business days- Free EU shipping over €49
- 24-month warranty included
- 14-day hassle-free returns
Standalone access control with integrated keypad and card reader, 125KHz EM, IP66.
Features:Compact single entry standalone access control with keypad and remote card reader.The RFID access control is designed for extreme weather conditions (-40°C~+60°C), suitable for outdoor as well as indoor use.Metal case anti-vandal. Anti-tamper alarm.Backlit keypad for use in the dark.Supports 10 visitor users with 1 to 10 entries.3 access modes: card, PIN or card+PIN.Supports 125KHz EM cards.
Technical specification:Number of users (cards/PINs): 1.000 (990 common users + 10 visitors).PIN length: 4-6 digits.Operating frequency: 125KHz.Card reader: EM.Operating voltage: 2-18 V DC.Idle current: <50mA.Active current: <80mA.Card reading distance: 2~6 cm.Number of doors supported: 1.Wiring connections: relay output, exit button.Relay: 1 (for lock, No, Nc, Com contacts).Adjustable relay output time: 0-99 seconds (5 seconds default).Alarm output load: 3A max.Safety class: IP66.Installation: wall mount.Material: zinc alloy.Operating temperature: -40°C~+60°C.Relative humidity: 10%~90%RH (non-condensing).Dimensions: 136 x 56 x 25 mm.Weight: 425g.
.Warranty: 24 months.
Features:Compact single entry standalone access control with keypad and remote card reader.The RFID access control is designed for extreme weather conditions (-40°C~+60°C), suitable for outdoor as well as indoor use.Metal case anti-vandal. Anti-tamper alarm.Backlit keypad for use in the dark.Supports 10 visitor users with 1 to 10 entries.3 access modes: card, PIN or card+PIN.Supports 125KHz EM cards.
Technical specification:Number of users (cards/PINs): 1.000 (990 common users + 10 visitors).PIN length: 4-6 digits.Operating frequency: 125KHz.Card reader: EM.Operating voltage: 2-18 V DC.Idle current: <50mA.Active current: <80mA.Card reading distance: 2~6 cm.Number of doors supported: 1.Wiring connections: relay output, exit button.Relay: 1 (for lock, No, Nc, Com contacts).Adjustable relay output time: 0-99 seconds (5 seconds default).Alarm output load: 3A max.Safety class: IP66.Installation: wall mount.Material: zinc alloy.Operating temperature: -40°C~+60°C.Relative humidity: 10%~90%RH (non-condensing).Dimensions: 136 x 56 x 25 mm.Weight: 425g.
.Warranty: 24 months.
