HiSmart

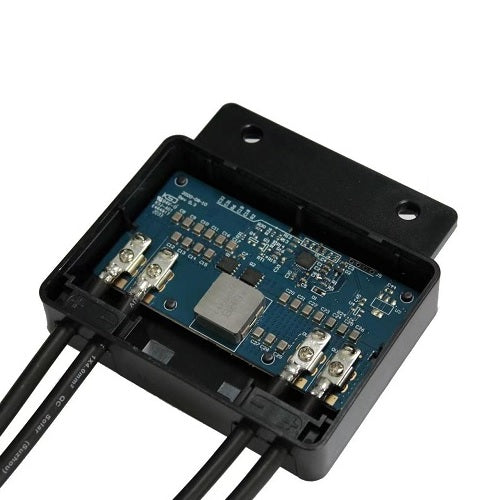

Solar Optimizer - Junction Box 600W

Name: Solar Optimizer - Junction Box 600W
Brand: HiSmart
SKU: NV820177
Price: 40.0 EUR
Availability: InStock

€40,00

VAT included. Shipping calculated at checkout.

SKU: NV820177 · EAN: 9990000820177

In stock — ships in 1–2 business days

Free EU shipping over €49
24-month warranty included
14-day hassle-free returns

Solar Junction Box - PV OptimizerFeatures: With module level optimization. Max. 99.5% efficiency.15A 600W, compatible with various PV modules.Reduces PV module mismatch loss, suitable for complex and changeable installation sites.Lower maintenance costs.Safe and reliable for shaded PV panels.Lower maintenance costs.Water and dust resistant (IP68), flame retardant (UL 94-5VA), with short-circuit protection.
Specifications:Input:Rated Input DC Power: 600W.Maximum Input Voltage: 55V DC.MPPT Operating Range: 8-55V DC.Max Input Current: 15A DC.Maximum Efficiency: 99.5%.Output:Maximum Output Current: 15A DC.Maximum Output Voltage: 42V DC.Overcurrent Protection: 18A DC.General parameters:Voltage: 1500VDC.Connectors: QC4.10 /MC4.Contact Resistance: <0.5mOm.Size Of Cables: 5.7/6.1/6.4 mm.Wire length: input 0.5m, output 1m.Working temperature: -40°C ~ +85°C.Safety class: IP68.Fire rating degree: UL 94-5VA.Safety standards: UL1741,IEC62109-1.EMC: IEC61000-6-2, IEC61000-6-3.Weight: 510g.Dimensions:105x100x21mm.
Warranty: 24 months.
