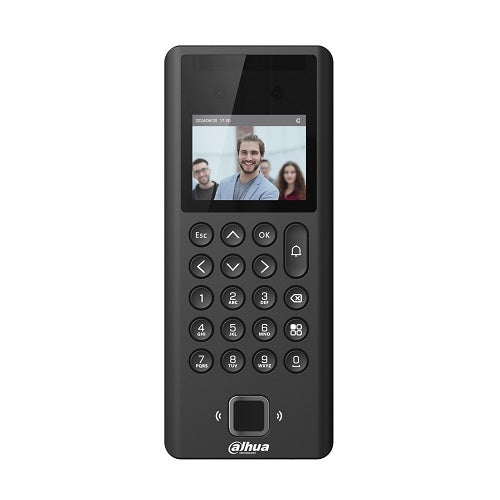

Single Door Face Recognition Access ASI3204E-DW

Features:
• Comes with a 2.4 inch LCD with a resolution of 320 (H) × 240 (V).• 2-MP CMOS dual-lens camera with IR illumination and DWDR.• Multiple unlock methods including face, ID card, password and fingerprint. You can configure scheduled unlock methods, or combine them to create your own personal unlock methods.• Supports 1,000 users, 1,000 faces, 3,000 fingerprints, 3,000 cards, 1,000 passwords, 50 administrators, and 100,000 records.• Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft) at an accuracy of 99.9%, and compares 1 face with N faces at the speed of 0.2 seconds per person.• Supports security extension modules for access control, preventing doors from being forcefully opened.• Supports Web attendance management and exporting local attendance reports.• Supports doorbell.• TCP/IP and Wi-Fi connection.• Provides power to the electromagnetic lock and card reader (max 12 V, 1 A).
Technical Specifications:
SystemMain Processor: Embedded Processor.Button Type: Mechanical.Network Protocol: IPv4;RTSP;UDP;P2P;IPv6;RTP;TCP.OSDP Protocol: Yes.Interoperability: ONVIF;CGI.SDK and API: Yes.BasicProduct Type: Standalone.Display Screen: 2.4-inch display screen.Screen Type: Non-touchscreen.Screen Resolution: 320 (H) × 240 (V).Camera: 2 MP CMOS HD Dual Cameras.WDR: DWDR.Light Compensation: Auto IR.Voice Prompt: Yes.Speaker: Yes.Casing Material: PC + ABS.FunctionVerification Method: Card/remote/password/fingerprint/face unlock.Card Type: ID card.Period List: 128 periods.Holiday Period: 128 periods.Network Update: Yes.First User Unlock: Yes.Remote Verification: Yes.Restricted List/Trusted List: Yes.Wi-Fi: Yes.Wireless Standard: IEEE802.11b/802.11g/802.11n.Wireless Frequency Range: 2.4 G.Peripheral Card Reader: One RS-485 card reader or one Wiegand card reader.Multi-user Authentication: Yes.Real-time Monitoring: Yes.Multi-factor Authentication: Yes.Capture Function: Yes.Web Configuration:Yes.Auto Registration: Yes.PerformanceCard Reading Distance: 0 cm–3 cm (0"–1.18").Face Recognition Height Range: 1.2 m–2.0 m (3.94 ft–6.56 ft).Face Recognition Distance: 0.3 m–1.5 m (0.98 ft–4.92 ft).Face Recognition Accuracy: 99.9%.Face Recognition Time: 0.2 s.Fingerprint Sensor Type: Optical fingerprint.Fingerprint Verification Mode: 1:N.Fingerprint Comparison Time: 1.5 s.Fingerprint Recognition Time: 0.5 s.UserUser (Card) Type: Common users, VIP users, patrol users, visitor users, blocklist users, other users, custom users 1 and custom users 2.CapacityUser Capacity: 1000.Face Image Capacity: 1000.Fingerprint Capacity: 3000.Card Capacity: 3000.Password Capacity: 1000.Record Capacity: 100000.PortRS-485: 1 port (reuse the Wiegand port).Wiegand: 1 port (reuse the RS-485 port).USB: 1 × USB 2.0 port.Network Port: 1 × 10/100 Mbps Ethernet port.Doorbell: 1.Exit Button: 1.Door Status Detection: 1.Lock Control: 1.Power Output Port: 1 (12 V, 1.0 A).AlarmAnti-pass Back: Yes.Tamper Alarm: Yes.Duress Alarm: Yes.Door Sensor Timeout: Yes.Intrusion: Yes.Illegal Card Exceeding Threshold: Yes.Duress Fingerprint: Yes.GeneralPower Adapter: Optional.Power Supply: 12 VDC, 2 A.Power Consumption: < /=12 W.Product Dimensions: 184.9 mm × 76.2 mm × 20.5 mm (7.28" × 3.00" × 0.81") (H × W × D).Packaging Dimensions:219 mm × 122 mm × 58 mm (8.62" × 4.80" × 2.28") (H × W × D).Operating Temperature: –10 °C to +45 °C (+14 °F to +113 °F).Operating Humidity: 0%–90% (RH), non-condensing.Operating Altitude: 0 m–1,300 m (0 ft–4,265.09 ft).Operating Environment: Indoor.Gross Weight: 0.6 kg (1.32 lb).Accessory: Wall mount bracket (included).Installation: Wall Mount.Storage Temperature: –20 °C to +70 °C (–4 °F to +158 °F).Storage Humidity: 30%–75%.
