CNC

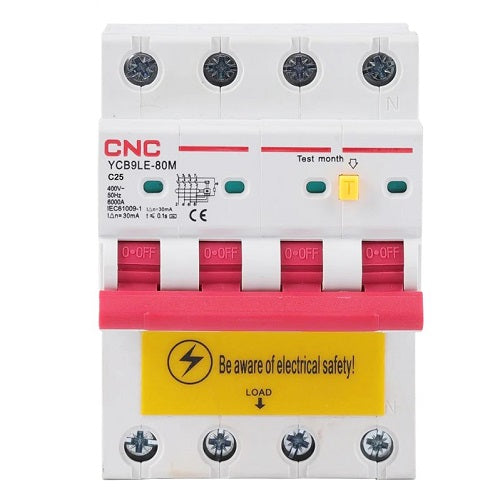

Residual Current Breaker with Over-Current, 4P, 25A, class C, 30mA, 6kA
€47,36
€36,93
VAT included. Shipping calculated at checkout.
SKU: NV821945 · EAN: 6942034324124
In stock — ships in 1–2 business days- Free EU shipping over €49
- 24-month warranty included
- 14-day hassle-free returns
Residual current circuit breaker with overcurrent protection, 4 poles, 25A, class C, 30mA, 6kA
Features:The RCBO used for the purpose of combined protection against overloading and short-circuiting against earth leakage currents.Anti-mistake contact terminal block.Flame retardant, high temperature resistance and impact resistance.Contact position indication (red indicated closed, green indicates opened).
Technical data:Number of contacts: 4.Rated current (In): 25 A.Class: C.Rated voltage (Ue): AC 230 V.Rated sensitivity: 30mA.Break time: = 0.1s.Insulation voltage (Ui): 500 V.Frequency: 50/60 Hz.Rated short-circuit capacity (Icn): 6000 A.Rated impulse withstand voltage (Uimp): 4000 V.Mechanical life: 10000 times.Electrical life: 4000 times.Safety class: IP20.Connection type: cable / pin-type busbar.Wire/busbar cross-sectional area: up to 35mm².Connection: from top.Installation: on DIN rail EN 60715 (35mm).Operating temperature: -25°C~+70°C.Dimensions: 82 x 72 x 78 mm.Standards: IEC 61009-1 / EN 61009-1.
Warranty: 24 months.
Features:The RCBO used for the purpose of combined protection against overloading and short-circuiting against earth leakage currents.Anti-mistake contact terminal block.Flame retardant, high temperature resistance and impact resistance.Contact position indication (red indicated closed, green indicates opened).
Technical data:Number of contacts: 4.Rated current (In): 25 A.Class: C.Rated voltage (Ue): AC 230 V.Rated sensitivity: 30mA.Break time: = 0.1s.Insulation voltage (Ui): 500 V.Frequency: 50/60 Hz.Rated short-circuit capacity (Icn): 6000 A.Rated impulse withstand voltage (Uimp): 4000 V.Mechanical life: 10000 times.Electrical life: 4000 times.Safety class: IP20.Connection type: cable / pin-type busbar.Wire/busbar cross-sectional area: up to 35mm².Connection: from top.Installation: on DIN rail EN 60715 (35mm).Operating temperature: -25°C~+70°C.Dimensions: 82 x 72 x 78 mm.Standards: IEC 61009-1 / EN 61009-1.
Warranty: 24 months.
