BENY
PV Combiner Box, DC 8in-8out, IP66
€676,85
VAT included. Shipping calculated at checkout.
SKU: NV821365 · EAN: 9990000821365
In stock — ships in 1–2 business days- Free EU shipping over €49
- 24-month warranty included
- 14-day hassle-free returns

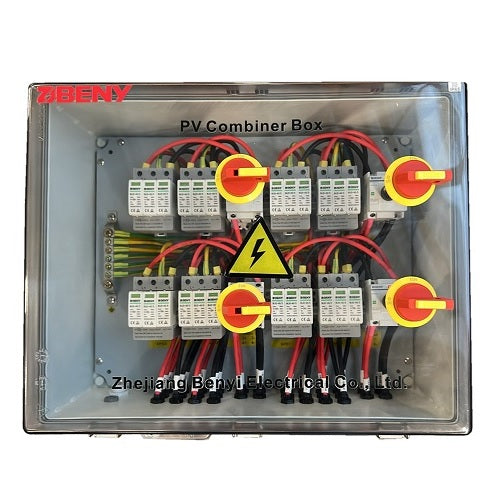

PV Combiner Box, DC 8in-8out, IP66
Features:8 input 8 output 1000V DC.DC string box is designed for 8 string PV system.For surge protection and isolating at solar DC side.Flame retardant rating V0, UV resistance, IP66 waterproof enclosure, degree of resistance to impacts IK10.Set includes MC4 and glands.DC switch:6P, 1000V, 50A (2pcs.).Door clutch easier operating and lockable handle.Patented DC arc extinguishing chamber.Magnetic steels inside ensure rapid and safe extinguishing.Certification: UI508i approval, IEC60947-3 Pv2.DC SPD:3P, 1000V, 40kA. (8pcs.).Designed for solar PV protection.Higher capacity in 20KA (IEC, UL).Response time <25ns.Certification: IEC 61643, UI1449.
Technical specifications:Input: 8 strings.Output: 8 strings.Max voltage: 1000V.Short circuit current per Input (Isc): 15A-30A (changeable).Max current output: 50A.Enclosure material: polycarbonate.Safety class: IP66, IK10, V0.Dimensions: 400x600x180.Input cable glands: PG09, 2.5-16mm.Output cable glands: PG21, 2.5-16mm.Operating temperature: -25°C ~ +60°C.
Warranty: 24 months.
Features:8 input 8 output 1000V DC.DC string box is designed for 8 string PV system.For surge protection and isolating at solar DC side.Flame retardant rating V0, UV resistance, IP66 waterproof enclosure, degree of resistance to impacts IK10.Set includes MC4 and glands.DC switch:6P, 1000V, 50A (2pcs.).Door clutch easier operating and lockable handle.Patented DC arc extinguishing chamber.Magnetic steels inside ensure rapid and safe extinguishing.Certification: UI508i approval, IEC60947-3 Pv2.DC SPD:3P, 1000V, 40kA. (8pcs.).Designed for solar PV protection.Higher capacity in 20KA (IEC, UL).Response time <25ns.Certification: IEC 61643, UI1449.
Technical specifications:Input: 8 strings.Output: 8 strings.Max voltage: 1000V.Short circuit current per Input (Isc): 15A-30A (changeable).Max current output: 50A.Enclosure material: polycarbonate.Safety class: IP66, IK10, V0.Dimensions: 400x600x180.Input cable glands: PG09, 2.5-16mm.Output cable glands: PG21, 2.5-16mm.Operating temperature: -25°C ~ +60°C.
Warranty: 24 months.
Shipping & delivery
Orders placed before 14:00 EET ship the same business day. EU delivery in 2–5 business days with tracking included.
Warranty & returns
Every product carries the full 24-month EU consumer warranty. You may return any item within 14 days of delivery for a full refund.
Compatibility
Check the compatibility list in the description above. Not sure? Contact us with your device model and we will confirm before you order.
