HiSmart
Power supply 48V, 2.5A, 120W, DIN
€43,56
VAT included. Shipping calculated at checkout.
SKU: DR-120-48 · EAN: 9990000700554
In stock — ships in 1–2 business days- Free EU shipping over €49
- 24-month warranty included
- 14-day hassle-free returns

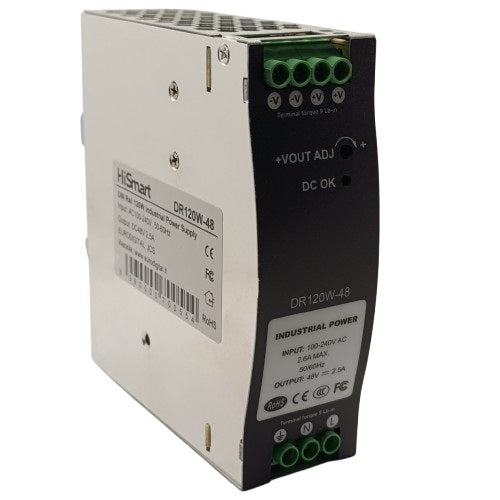

Power supply 48V, 2.5A, 120W, DIN.
Features:Economical slim 60W DIN Rail industrial power supply. Can be installed on DIN rails: TS-35/7.5 or TS-35/15.Cooling by free air convection. Operation at the ambient temperature between -30°C to 70°C.Protections: short circuit / overload / over voltage.High efficiency, durability, reliability, narrow profile.Meets the EU standards EMC for harmonic current emissions EN61000-3-2.
Specifications:Input range AC: 90-264V. Frequency 47-63Hz.Output voltage DC: 48V.DC voltage adjustable range: 47 ~ 56V.Rated current: 2.5A.Rated power: 120W.AC current: 2.2A/115V, 1.1A/230V.Ripple and noise: 100mV p-p.Efficiency: >91%.Leakage current: <0.25mA / 264V AC.Operating temperature: from -30°C to + 70°C.Operating humidity: 20% -95% RH.Dimension: 135x121x40mm.Certificates: RoHS, CE.
Warranty: 24 months.
Features:Economical slim 60W DIN Rail industrial power supply. Can be installed on DIN rails: TS-35/7.5 or TS-35/15.Cooling by free air convection. Operation at the ambient temperature between -30°C to 70°C.Protections: short circuit / overload / over voltage.High efficiency, durability, reliability, narrow profile.Meets the EU standards EMC for harmonic current emissions EN61000-3-2.
Specifications:Input range AC: 90-264V. Frequency 47-63Hz.Output voltage DC: 48V.DC voltage adjustable range: 47 ~ 56V.Rated current: 2.5A.Rated power: 120W.AC current: 2.2A/115V, 1.1A/230V.Ripple and noise: 100mV p-p.Efficiency: >91%.Leakage current: <0.25mA / 264V AC.Operating temperature: from -30°C to + 70°C.Operating humidity: 20% -95% RH.Dimension: 135x121x40mm.Certificates: RoHS, CE.
Warranty: 24 months.
