Power supply 24V, 20A, 500W
€41,14
VAT included. Shipping calculated at checkout.
SKU: LRS-500-24 · EAN: 9990000700806
In stock — ships in 1–2 business days- Free EU shipping over €49
- 24-month warranty included
- 14-day hassle-free returns

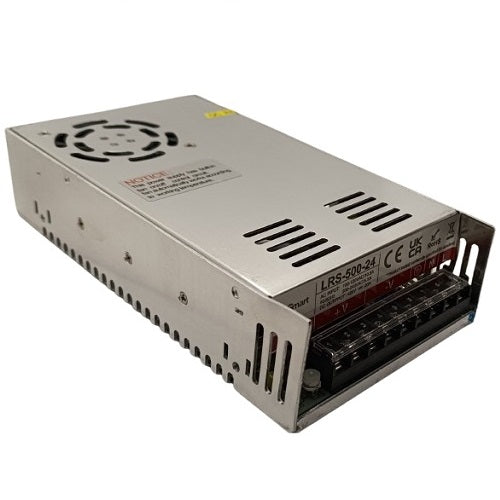

Power supply 24V, 20A, 500W with fan.
Features:Thin type 50mm profile switching power supply operating in pulse mode.Small volume, low weight, high efficiency.Protections: short circuit / over temperature / overload / over voltage.Forced-air cooling via built-in DC fan with automatic temperature-controlled operation.Thanks to its ultra-slim design, the unit can be conveniently installed in electrical distribution and automation cabinets where space saving is important.Suitable for industrial, automation, control, and electrical distribution systems.
Specifications:Type: switching power supply.Input range AC: 100-240V. Frequency 47-63Hz.Output voltage DC: 24V.DC voltage adjustable range: ±10%.Max.output current: 20A.Rated power: 500W.AC current: 10.5A/110V, 5.5A/220V.Ripple and noise: 300mV p-p.Efficiency: 87%.Leakage current: <3.5mA / 240V AC.Working temperature: -10°C~+50°C.Working humidity: 20%-90%RH.Dimension: 215x115x50mm.Weight: 0.9kg.
Warranty: 24 months.
Features:Thin type 50mm profile switching power supply operating in pulse mode.Small volume, low weight, high efficiency.Protections: short circuit / over temperature / overload / over voltage.Forced-air cooling via built-in DC fan with automatic temperature-controlled operation.Thanks to its ultra-slim design, the unit can be conveniently installed in electrical distribution and automation cabinets where space saving is important.Suitable for industrial, automation, control, and electrical distribution systems.
Specifications:Type: switching power supply.Input range AC: 100-240V. Frequency 47-63Hz.Output voltage DC: 24V.DC voltage adjustable range: ±10%.Max.output current: 20A.Rated power: 500W.AC current: 10.5A/110V, 5.5A/220V.Ripple and noise: 300mV p-p.Efficiency: 87%.Leakage current: <3.5mA / 240V AC.Working temperature: -10°C~+50°C.Working humidity: 20%-90%RH.Dimension: 215x115x50mm.Weight: 0.9kg.
Warranty: 24 months.
