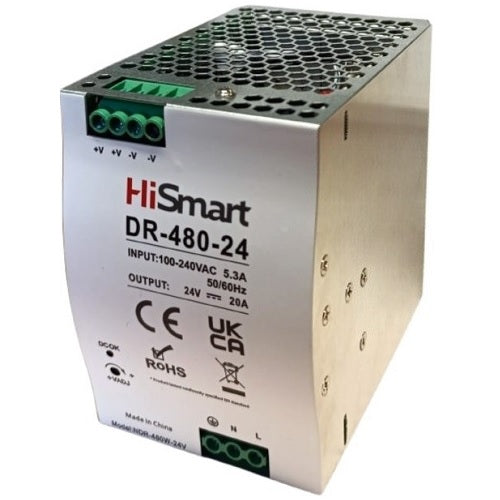

Power supply 24V, 20A, 480W, DIN
€84,70
VAT included. Shipping calculated at checkout.
SKU: DR-480-24 · EAN: 9990000700752
In stock — ships in 1–2 business days- Free EU shipping over €49
- 24-month warranty included
- 14-day hassle-free returns
Industrial power supply 24V, 20A, 480W, DIN.
Features:Aluminum high-power industrial switching power supply designed for mounting on a standard 35 mm DIN rail.Protection: overload, overtemperature, overvoltage, and short-circuit protection.Cooling by free air convection. The metal casing improves heat dissipation.No load consumption: < 0.3W.Complies with the industrial immunity standards IEC 61000-6-2 (BS EN/EN61000-6-2).Suitable for industrial control systems, factory automation, semiconductor manufacturing equipment, electromechanical equipment, etc.
Specifications:Type: switching power supply.Input range AC: 90-264V.Frequency: 47-63Hz.Output voltage DC: 24V.Rated current: 20A.Rated power: 480.8W.AC current: 4.8A/115V, 2.1A/230V.Ripple and noise: 240mvp-p.Efficiency: 92%.Leakage current: <3.5mA/220V AC.Working temperature: -20°C~+60°C.Working humidity: 20%-90%RH.Dimension: 85.5x125.2x128.5 mm.Weight: 1.2kg.
Warranty: 24 months.
Features:Aluminum high-power industrial switching power supply designed for mounting on a standard 35 mm DIN rail.Protection: overload, overtemperature, overvoltage, and short-circuit protection.Cooling by free air convection. The metal casing improves heat dissipation.No load consumption: < 0.3W.Complies with the industrial immunity standards IEC 61000-6-2 (BS EN/EN61000-6-2).Suitable for industrial control systems, factory automation, semiconductor manufacturing equipment, electromechanical equipment, etc.
Specifications:Type: switching power supply.Input range AC: 90-264V.Frequency: 47-63Hz.Output voltage DC: 24V.Rated current: 20A.Rated power: 480.8W.AC current: 4.8A/115V, 2.1A/230V.Ripple and noise: 240mvp-p.Efficiency: 92%.Leakage current: <3.5mA/220V AC.Working temperature: -20°C~+60°C.Working humidity: 20%-90%RH.Dimension: 85.5x125.2x128.5 mm.Weight: 1.2kg.
Warranty: 24 months.
