HiSmart

Power supply 12V, 20A, 240W, DIN

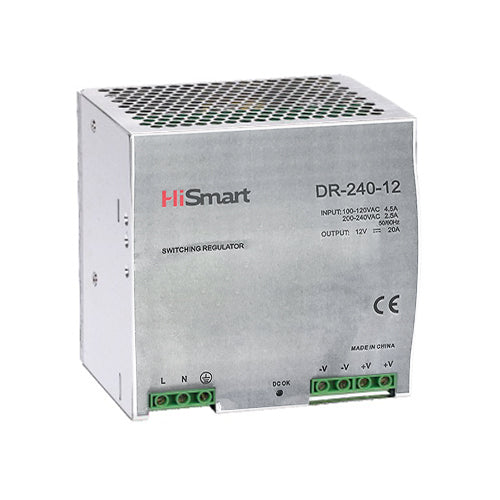

Name: Power supply 12V, 20A, 240W, DIN
Brand: HiSmart
SKU: DR-240-12
Price: 54.59 EUR
Availability: InStock

€59,99 €54,59

VAT included. Shipping calculated at checkout.

SKU: DR-240-12 · EAN: 9990000700530

In stock — ships in 1–2 business days

Free EU shipping over €49
24-month warranty included
14-day hassle-free returns

Power supply 12V, 20A, 240W, DIN.
Features:Power supply operating in pulse mode. Can be installed on DIN rail: TS-35/7.5 or TS-35/15.Cooling by free air convection.Protections: short circuit / over temperature / overload / over voltage.Small volume, low weight, high efficiency.
Specifications:Type: switching power supply.Input range AC: 95-264V. Frequency 47-63Hz.Output voltage DC: 12V.DC voltage adjustable range: -9% /+10%.Rated current: 20A.Rated power: 240W.AC current: 4.5A/115V, 2.5A/230V.Ripple and noise: 120mV p-p.Effieciency: 86%.Leakage current: <3.5mA / 240V AC.Working temperature: -10°C~+60°C.Working humidity: 20%-90%RH.Dimension: 125.5x125.2x100mm.Weight: 1.13kg.
Warranty: 24 months.
