EXTRA DIGITAL

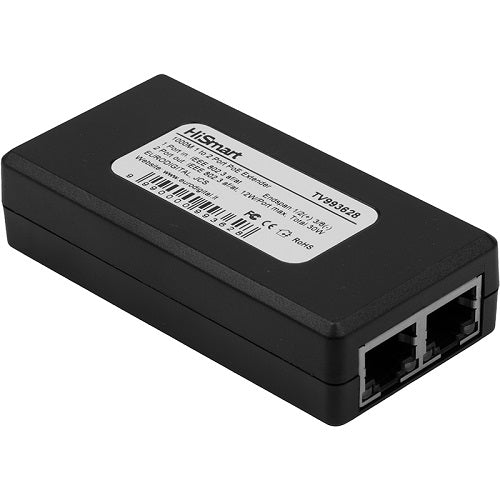

PoE 10/100/1000M Extender 100m, 15W
€14,52
VAT included. Shipping calculated at checkout.
SKU: TV993628 · EAN: 9990000993628
In stock — ships in 1–2 business days- Free EU shipping over €49
- 24-month warranty included
- 14-day hassle-free returns
PoE 10/100/1000M Extender 100m (1 input + 2 output ports)
Features:PoE and LAN extender for 100 meters. Transmits Ethernet data and PoE power.10/100/1000M RJ45, PoE output power 15.4W/30W.Supports two PoE power supply types 1,2(+)/3,6(-) or 4,5(+)/7,8(-).The network and power supply can have an extended transmission distance of 100 meters.Compliant with IEEE802.3AF/AT PoE standards.
Specifications:PoE input: 1x 10/100/1000M RJ45 connector.PoE output: 2x 10/100/1000M RJ45 connector.Power pin assignment: End-span 1,2(+)/3,6(-) or Mid-span 4,5(+)/7,8(-).Network protocols and standards: IEEE802.3AF; IEEE802.3AT; IEEE 802.3i 10BASET, IEEE 802.3u 100BASET, IEEE 802.3x Flow Control, IEEE 802.3af DTE Power via MDI.Network Medium: Cat5 or more UTP (< 100 meter).Working temperature: -20°C~+55°C.Working Humidity: 10%~90% (non-condensing).LED indicators: Power; Network; PoE working status.Dimensions: 85x40x22 mm.Safety: CE, FCC, RoHS.
Warranty: 24 months.
Features:PoE and LAN extender for 100 meters. Transmits Ethernet data and PoE power.10/100/1000M RJ45, PoE output power 15.4W/30W.Supports two PoE power supply types 1,2(+)/3,6(-) or 4,5(+)/7,8(-).The network and power supply can have an extended transmission distance of 100 meters.Compliant with IEEE802.3AF/AT PoE standards.
Specifications:PoE input: 1x 10/100/1000M RJ45 connector.PoE output: 2x 10/100/1000M RJ45 connector.Power pin assignment: End-span 1,2(+)/3,6(-) or Mid-span 4,5(+)/7,8(-).Network protocols and standards: IEEE802.3AF; IEEE802.3AT; IEEE 802.3i 10BASET, IEEE 802.3u 100BASET, IEEE 802.3x Flow Control, IEEE 802.3af DTE Power via MDI.Network Medium: Cat5 or more UTP (< 100 meter).Working temperature: -20°C~+55°C.Working Humidity: 10%~90% (non-condensing).LED indicators: Power; Network; PoE working status.Dimensions: 85x40x22 mm.Safety: CE, FCC, RoHS.
Warranty: 24 months.
