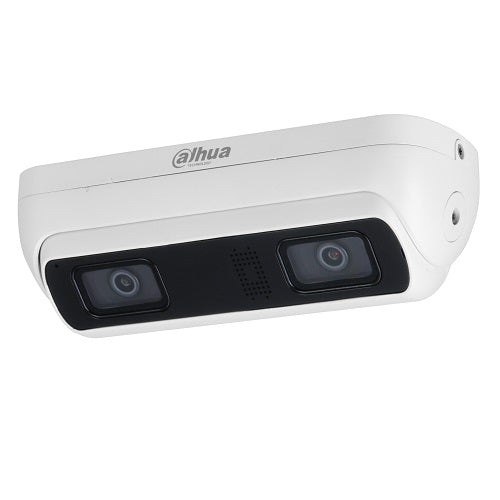

OP Network Camera 4P HDW8441X-BV-3D 2.8mm

4MP WizMind Dual-Lens Stereo Analysis Network Camera IPC-HDW8441X-BV-3D
Features:
• 4-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.• Outputs max• 4 MP (2688 x 1520)@25/30 fps.• Built-in GPU chips, binocular stereo vision and deep learning algorithm, which can improve the detection accuracy.• Intelligent functions: Stereo analysis and IVS.• Stereo analysis: Crossing warning line, warning area intrusion, running detection, people approaching detection, violence detection, fall detection, abnormal number of people detection and people stay detection.• Privacy Protection: Mosaics can be automatically placed over the face or body of a person to protect their privacy.• Built-in IR LED, and the max. illumination distance is 20 m.• Sound Management: With its built-in Mic and Dahua noise reduction algorithms, the camera supports the sound management function, using it to collect vocals, adaptively reduce noise, and filter non-human voices.• ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.• Height self-adaptation and height filtering.• Alarm: 2 in, 2 out; audio: 2 in, 1 out; RS-485; BNC; supports max. 512 G Micro SD card; Built in Mic and speaker, support two-way talk.• 12 VDC/PoE/ePoE power supply, 12 VDC power output, max. current 165 mA, and peak current 700 mA, easy for installation.• IP67 and IK10 protection.
Specifications:
Image Sensor: 1/2.8" CMOSMax. Resolution: 2688 (H) x 1520 (V)ROM: 4 GBRAM: 2 GBScanning System: ProgressiveElectronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 sMin. Illumination:2.0 mm: 0.005 lux@F2.0 (Color,30 IRE), 0.0005 lux@F2.0 (B/W,30 IRE), 0 lux (Illuminator on)2.8 mm: 0.005 lux@F1.6(Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux (Illuminator on)S/N Ratio: >56 dBIllumination Distance: Up to 20 m (65.62 ft) (IR)Illuminator On/Off Control: Auto;ManualIlluminator Number: 1 (IR LED)Angle Adjustment: Tilt: -10° to 70°Lens Type: Fixed-focalLens Mount: M12Focal Length: 2.8 mm;2.0 mmMax. Aperture: 2.0 mm: F2.0; 2.8 mm: F1.6Field of View:2.0 mm: H: 108°; V: 74°; D: 117°2.8 mm: H: 87°; V: 55°; D: 97°Iris Control: FixedClose Focus Distance: 2.0 mm: 0.4 m (1.31 ft); 2.8 mm: 1.1 m (3.61 ft)DORI Distance:2.0 mm: Detect 44.8 m, Observe 17.9 m, Recognize 9.0 m, Identify 4.5 m2.8 mm: Detect 63.6 m, Observe 25.4 m, Recognize 12.7 m, Identify 6.4 mDORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.Smart Event: IVS Abandoned object; missing objectIntelligence:IVS (Perimeter Protection): Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection; people gathering; loitering detection; privacy protectionStereo Analysis: Crossing warning line; warning area intrusion; running detection (only supported by inclined mount cameras); people approaching detection; violence detection (including fighting and smashing); fall detection; abnormal number of people detection; people stay detection; privacy protection; height filteringSmart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)Smart Codec: Smart H.265+; Smart H.264+AI Coding: AI H.265; AI H.264Video Frame Rate:Main stream: 2688 x 1520@(1–25/30 fps)sub stream: 1920 x 1080@(1–25/30 fps)third stream: 1920 x 1080@(1–25/30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.Stream Capability: 3 streamsResolution: 4M (2688 x 1520/2560 x 1440); 3M (2048 x 1536/2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)Bit Rate Control: ABR;CBR;VBRVideo Bit Rate: H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbpsDay/Night: Auto(ICR)/Color/B/WBLC: YesHLC: YesWDR: DWDRWhite Balance: Auto; natural; street lamp; outdoor; manual; regional customGain Control: AutoNoise Reduction: 3D NRMotion Detection: OFF/ON (4 areas, rectangular)Region of Interest (RoI): Yes (4 areas)Image Stabilization: Electronic Image Stabilization (EIS)Smart Illumination: YesDefog: YesPrivacy Masking: 8 areasBuilt-in MIC: Yes, built-in MicBuilt-in Speaker: Yes, built-in speakerAudio Compression: G.711a; G.711Mu; PCM; G.726; G.723Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; voltage detection; illegal access; motion detection; video tampering; scene changing; audio detection; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; crossing warning line; warning area intrusion; running detection; abnormal number of people detection; fall detection; people approaching detection; violence detection; people stay detectionNetwork Port: RJ-45 (10/100/1000 Base-T)SDK and API: YesNetwork Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; auto registrationInteroperability: ONVIF (Profile S; Profile G; Profile T); P2P; CGIUser/Host: 20Storage: FTP; SFTP; Micro SD card (support max. 512 GB); NASBrowser: IE: IE 9 and later; Chrome: Chrome 41 and later; Firefox: Firefox 50 and later; Safari: Safari 10 and laterManagement Software: Smart PSS Lite; DSS; DMSSMobile Client: iOS;AndroidCyber Security: Configuration encryption;Trusted execution;Session security;Digest;Security logs;WSSE;Account lockout;Security warning;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of x.509 certificationCertifications: CE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUPort: RS-485, 1 (baud rate range: 1200 bps–115200 bps)Audio Input: 2 channels (RCA port)Audio Output: 1 channel (RCA port)Alarm Input: 2 channels in: wet contact, 5 mA 3–5 VDCAlarm Output: 2 channels out: wet contact, 300 mA 12VDCAnalog Output: 1 channel (CVBS output: BNC)Power Output: 12 VDC power output, max. current 165 mA, peak current 700 mAPower Supply: 12 VDC/PoE (802.3af)/ePoEPower Consumption: Basic: 5.9 W (12 VDC), 7 W (PoE);Max. (intelligence on + IR intensity + turn on the speaker+ power output): 10.8 W (12 VDC), 12.9 W (PoE)Operating Temperature: -40 °C to +60 °C (-40 °F to +140 °F)Operating Humidity: <95% (RH), non-condensingStorage Temperature: -40 °C to +60 °C (-40 °F to +140 °F)Storage Humidity: <95% (RH), non-condensingProtection: IP67; IK10.Casing Material: MetalProduct Dimensions: 204.0 mm x 78.0 mm x 61.6 mm (8.03" x 3.07" x 2.43")(L x W x H).Net Weight: 0.82 kg.Gross Weight: 1.14 kg.
