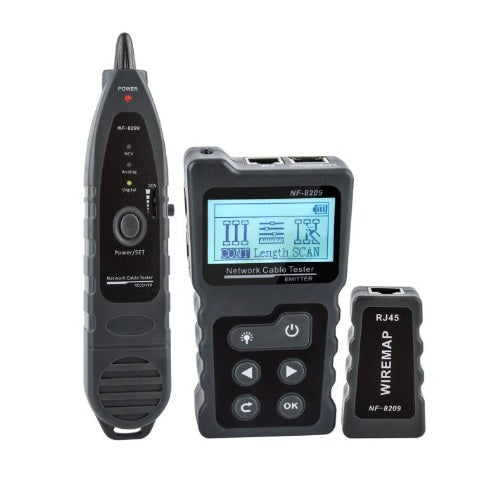

Network Cable Tester

Network cable tester.
Features: STP, UTP cable testing.PoE scanning and PSE type identification.Digital / analog signal testing.Measure the cable length and fault distance.For use with IEEE 802.3af / at and non-standard PoE switch (5~60V). Identifies AT or AF standards of PSE type.LED backlight: the emitter and the receiver have a backlight function, convenient for working in dark environments.Built-in NCV included in the receiver.
Features: Cable continuity scan: tests open, short, cross etc. for STP, UTP cables, wiremap, fault location.Cable length setting: measures LAN cable length, range: 2.5 m ~ 200 m.PoE testing: POE voltage, power supply polarity, power supply mode, PSE type indicators.Flash function - locates the target network port by the flashing port light on switch/ router. Displays connected switch’s information: network speed and protocol etc.
Specifications: Test cable type: CAT5e / CAT6a / CAT6 (STP + UTP).Power supply: battery 6R22, 9V (not included) and AAA batteries x3 (not included).Max range (wiremap and scan): 600m.Cable length test range: 2.5 m ~ 200 m.Cable length accuracy: +/- 1.6m.Scan max signal voltage 9+/-1V p-p.Scan frequency: 130KHz.Length breakage location: yes.Analog / digital mode: yes.PoE test range: DC 5-60V standard / non-standard PoE switch.PoE voltage display: yes.PSE type: standard: IEEE802.3af / IEEE802.3at; non-standard.Voltage protection: DC 48V 5mA.LCD display: 128x64 dot-matrix with backlight.Max. emitter working current: <150mA.Adjustable sensitivity: yes.AC voltage detecting: yes.Max. receiver working current: <100mA.Remote control port: RJ45.Dimensions:Emitter: 125mmx68mmx28mm.Receiver: 210mmx43mmx27mm.Remote: 65mmx37mmx23mm.
Complete set: Emitter.Receiver.Remote control.Manual and warranty card.Cable adapters set.Headphones.Carry bag.
Warranty: 24 months.
