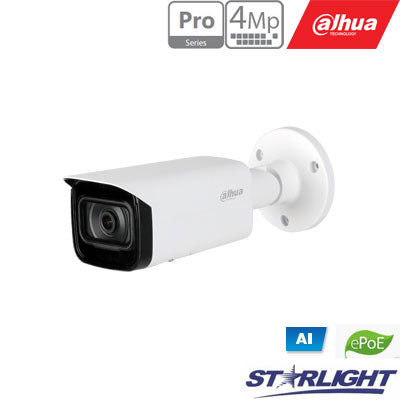

IP AI Network Camer 4MP 2K IPC-HFW5442T-ASE

Features:
• 1/1.8” 4Megapixel progressive scan CMOS• H.265 & H.264 triple-stream encoding• 25/30 fps@2688 × 1520, 50/60 fps@1080 (1920 × 1080)• WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC• Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS• 3.6 mm• 1/1 Alarm in/out, 1/1 audio in/out• Max. IR LEDs Length 50 m• Micro SD memory, IP67
Technical Specifications:
Camera• Image Sensor 1/1.8” 4Megapixel progressive scan CMOS• Effective Pixels 2688 (H) × 1520 (V)• RAM/ROM 512 MB/128 MB• Scanning System Progressive• Electronic Shutter Speed Auto/Manual, 1/3 s–1/100000 s• Minimum Illumination 0.001 Lux@F1.6• IR Distance Distance up to 50 m (164 ft)• IR On/Off Control Auto/Manual• IR LEDs 4Lens• Lens Type Fixed• Mount Type Board-in• Focal Length 3.6• Max. Aperture F1.6• Angle of View H: H: 89°, V: 48°• Optical Zoom N/A• Aperture Type Fixed• Close Focus Distance 1.3 m (4.27 ft)/1.9 m (6.23 ft)/3.8 m (12.47 ft)Pan/Tilt/Rotation• Pan/Tilt/Rotation Range: Pan: 0?–360?; Tilt: 0?–90?; Rotation: 0?–360?Artificial Intelligence• Face Capture Support face image capture• Perimeter Protection Tripwire, Intrusion (Human & Vehicle classification)• People Counting• Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detectionGeneral Intelligence• Event Trigger• Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomalyGeneral Intelligence• Object Abandoned/MissingVideo• Compression H.265+, H.265, H.264+, H.264, H.264B, H.264H, MJPEG(sub stream)• Streaming Capability 3 Streams• Resolution: 2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)Frame Rate
• Main Stream: 2688 × 1520 (1 fps–25/30 fps) 2560 × 1440 (1 fps–25/30 fps)1920 × 1080 (1 fps–50/60 fps)
• Sub Stream: D1 (1 fps–25/30 fps) D1 (1 fps–50/60 fps)• Third Stream: 1080P (1 fps–16 fps)• Bit Rate Control CBR/VBR• Bit Rate H.264: 32 Kbps–8192 Kbps H.265: 19 Kbps–8192 Kbps• Day/Night Auto(ICR)/Color/B/W• BLC Mode BLC/HLC/WDR (140 dB)• White Balance Auto/Natural/Street Lamp/Outdoor/Manual• Gain Control Auto/Manual• Noise Reduction 3D DNR• Motion Detetion Off/On (4 Zone, Rectangle)• Region of Interest Off/On (4 Zone)• Electronic Image Stabilization (EIS) N/A• Smart IR Support• Defog Support• Digital Zoom N/A• Flip 0°/90°/180°/270°• Mirror Off/On• Privacy Masking Off/On (4 Area, Rectangle)Audio• Compression G.711a, G.711Mu, G.726, AAC, G.723Network• thernet RJ-45 (10/100 Base-T)• Protocol: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x• Interoperability ONVIF (Profile S/Profile G), CGI, Milstone, Genetec, P2P• Streaming Method Unicast/Multicast• Max. User Access 20 UsersEdge Storage• NAS,FTP• Micro SD card 256 GB• Web Viewer IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12)• Management Software Smart PSS, DSS, P2P• Smart Phone iOS, AndroidCertifications• CE-LVD: EN60950-1• CE-EMC: Electromagnetic Compatibility Directive• 2014/30/EU• FCC: 47 CFR FCC Part 15, Subpart B• UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07Interface• Video Interface N/A• Audio Interface 1/1 channel In/Out• RS485 N/A• Alarm 1 channel In: 5mA 5V DC• 1 channel Out: 300mA 12V DCElectrical• Power Supply DC 12V (±30%), PoE (802.3af) (Class 0)• Power Consumption <9.5WEnvironmental• Operating Conditions -30° C to +60° C (-22° F to +140° F)/10%RH–95%RH• Strorage Conditions -30° C to +60° C (-22° F to +140° F)• Ingress Protection IP67• Vandal Resistance N/AConstruction• Casing Metal• Dimensions 244.1 mm × 79.0 mm × 75.9 mm• Net Weight 0.815 kg (1.80 lb)• Gross Weight 1.08 kg (2.38 lb)
