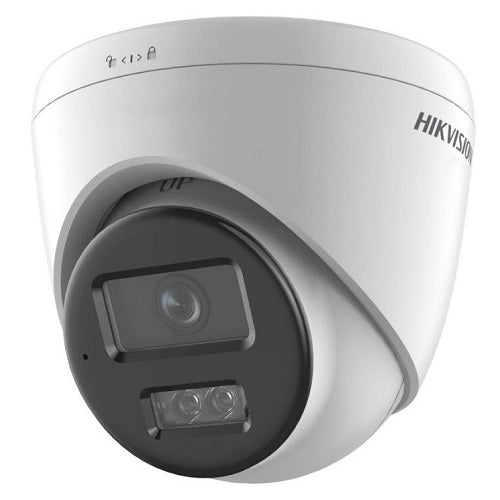

Hikvision DS-2CD1383G2-LIU 2.8mm

Features
Model: DS-2CD1383G2-LIU, whiteHigh quality imaging with 8 MP resolutionSupport Human and Vehicle DetectionSmart Hybrid Light: advanced technology with long rangeEfficient H.265+ compression technologyBuilt-in microphone for real-time audio securityWater and dust resistant (IP67)
Specifications
Camera• Image Sensor: 1/2.7" Progressive Scan CMOS• Max. Resolution: 3840 × 2160• Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR• Shutter Time: 1/3 s to 1/100,000 s• Day & Night: IR cut filter• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°Lens• Lens Type: Fixed focal lens, 2.8mm• Focal Length & FOV: 2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°• Lens Mount: M12• Iris Type: Fixed• Aperture: F2.0• DORI 2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 mIlluminator• Supplement Light Type IR, White Light• Supplement Light Range Up to 40 m• Smart Supplement Light Yes• IR Wavelength 850 nmVideo• Main Stream:50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)• Sub-Stream:50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)• Video Compression:Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEG,• Video Bit Rate 32 Kbps to 16 Mbps• H.264 Type Baseline Profile, Main Profile, High Profile• H.265 Type Main Profile• Bit Rate Control CBR, VBR• Scalable Video Coding (SVC) H.264 and H.265 encoding• Region of Interest (ROI) 1 fixed region for main streamAudio• Audio Type: Mono sound• Environment Noise Filtering: Yes• Audio Sampling Rate: 8 kHz/16 kHz• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps(MP2L2)/16 to 64 Kbps (AAC-LC)Network• Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP,UPnP• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user• Client: iVMS-4200, Hik-Connect• Web Browser: Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+Image• Wide Dynamic Range (WDR) 120 dB• SNR > 52 dB• Day/Night Switch: Day, Night, Auto, Schedule• Image Enhancement: BLC, HLC, 3D DNR• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser• Privacy Mask: 4 programmable polygon privacy masksInterface• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port• Built-in Microphone: YesEvent• Basic Event: Motion detection (support alarm triggering by specified target types (human andvehicle)), video tampering alarm, exceptionGeneral• Power: 12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W• Material: Metal & Plastic• Dimension: Ø 110 mm × 93 mm (Ø 4.33" × 3.66")• Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")• Weight Approx. 385 g (0.85 lb.)• With Package Weight Approx. 586 g (1.3 lb.)• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)• General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email• Language:English, UkrainianApproval• EMC:CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7• Safety:UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005• Environment:CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006• Protection IP67: IEC 60529-2013
