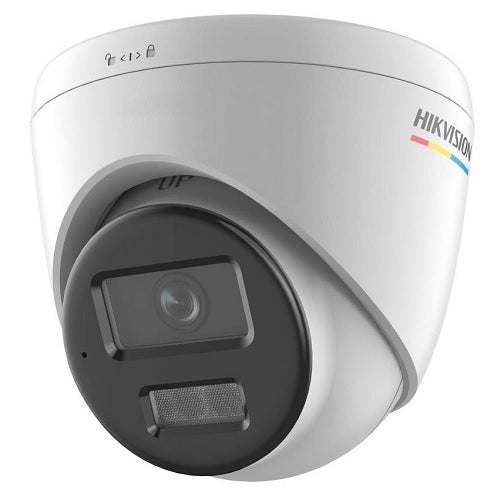

Hikvision DS-2CD1347G2H-LIUF 2.8mm

DS-2CD1347G2H-LIUF 4 MP Fixed Turret Network Camera ColorVu with Smart Hybrid Light
Features
Model: Dome, DS-2CD1347G2H-LIUF, 2.8mm, whiteHigh quality imaging with 4 MP resolutionSupport Human and Vehicle DetectionSmart Hybrid Light: advanced technology with long rangeBuilt-in microphone for real-time audio securityEfficient H.265+ compression technologyWater and dust resistant (IP67
Specifications
Camera• Image Sensor: 1/3" Progressive Scan CMOS• Max. Resolution: 2560 × 1440• Min. Illumination Color: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR• Shutter Time: 1/3 s to 1/100,000 s• Day & Night: IR cut filter• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°Lens• Lens Type: Fixed focal lens, 2.8mm• Focal Length & FOV: 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°• Lens Mount: M12• Iris Type: Fixed• Aperture: F1.0• DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 mIlluminator• Supplement Light Type: IR, White Light• Supplement Light Range: Up to 30 m• Smart Supplement Light: Yes• IR Wavelength: 850 nmVideo• Main Stream:50 Hz: 20 fps (2560 × 1440); 25 fps (1920 × 1080, 1280 × 720)60 Hz: 20 fps (2560 × 1440); 24 fps (1920 × 1080, 1280 × 720)• Sub-Stream:50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)• Video Compression:Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEG,• Video Bit Rate 32 Kbps to 8 Mbps• H.264 Type: Baseline Profile, Main Profile, High Profile• H.265 Type: Main Profile• Bit Rate Control: CBR, VBR• Region of Interest (ROI): 1 fixed region for main stream and sub-stream• Scalable Video Coding (SVC) H.264 and H.265 encodingAudio• Audio Type: Mono sound• Environment Noise Filtering: Yes• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC• Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)• Audio Sampling Rate: 8 kHz/16 kHzNetwork• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP• Simultaneous Live View: Up to 6 channels• API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user• Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)• Client: iVMS-4200, Hik-Connect• Web Browser: Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+Image• Wide Dynamic Range (WDR) 120 dB• SNR > /= 52 dB• Day/Night Switch: Day,Night, Auto, Schedule• Image Enhancement: BLC, HLC, 3D DNR• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser• Privacy Mask: 4 programmable polygon privacy masksInterface• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port• On-Board Storage: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB• Built-in Microphone: Yes• Reset Key: -F: YesEvent• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception• Linkage: Upload to memory card (-F model supports), trigger recording(-F model supports), upload to FTP,notify surveillance center,send email,trigger captureGeneral• Power: 12 VDC ± 25%, 0.5 A, max. 6.0 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W• Material: Metal & Plastic• Dimension: Ø110 mm × 93 mm (Ø4.33" × 3.66")• Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")• Weight Approx. 420 g (0.9 lb.)• With Package Weight Approx. 656 g (1.4 lb.)• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)• General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email• Language: English, UkrainianApproval• EMC:CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7• Safety:UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005• Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006• Protection IP67: IEC 60529-2013
