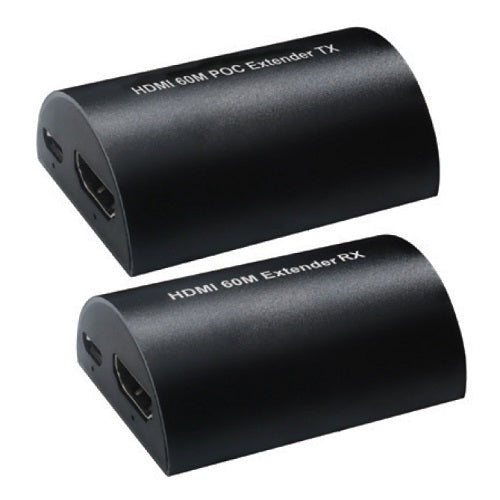

HDMI Extender 60m, 1080P

HDMI extender up to 60m, 1080P, HDMI cable connection up to 15m, with PoC function; power supply via micro USB cable. The extender uses a single Cat5e or Cat6 (recommended) cable instead of an HDMI cable to transmit a high-definition signal up to 60 meters.
Features: HDMI resolution 1080P / 60Hz.Supports a maximum frequency of 4.5Gbps, bandwidth 150MHz.Supports standard AWG26 HDMI cable, input up to 10 meters/ output up to 15 meters.Supports 60m long distance transmission.Low power consumption, low temperature, high safety.Support PoC function: power over cable, only needs one power adapter to beconnected to the TX terminals to power the entire kit operation.Note: The power supply can't exceed 5V.
Specifications: Max (CAT5e / CAT6 cable) length between transmitter and receiver: 60m.HDMI resolution: 1080p / 1080i / 720p / 576p / 576i / 480p / 480i.Max. transmitter (TX) operating current: 300mA.Max. receiver (RX) operating current: 300mA.Max. bandwidth: 150MHz.Max. baud rate: 4.5Gbps.Power adapter format: AC (50Hz, 60Hz) 100V-240V; DC 5V / 1A.Operating temperature: -15°C ~ +45°C.Operating humidity: 5-90% RH.Size: 52x38x17 mm.Weight: TX 24.5g; RX 24.9g.
Transmitter ports:POWER - power input port.INPUT - HDMI input port.CAT5E/6 - CAT5e / CAT6 cable connection port.Receiver’s ports:POWER - power input port.OUTPUT - HDMI output port.CAT5E/6 - CAT5e / CAT6 cable connection port.
Packing list: Transmitter (TX) x1.Receiver (RX) x1.Micro USB cable x1.
Warranty: 24 months.
