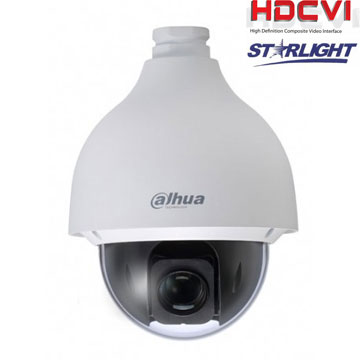

HD-CVI PTZ cam. SD50225I-HC

Features:
• 1/2.8” 2Megapixel STARVIS™ CMOS• Powerful 25x optical zoom• Starlight technology• 120dB true WDR, 3D DNR• Max. 25/30fps@1080P, 25/30/50/60fps@720P• IP67, IK10
Technical Specifications:
Camera• Image Sensor 1/2.8” STARVIS™ CMOS• Effective Pixels 1920(H) x 1080(V), 2 Megapixels• Scanning System Progressive• Electronic Shutter Speed 1/3s~1/300,000s• Minimum Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6• S/N Ratio More than 55dB• IR Distance N/A• IR On/Off Control N/A• IR LEDs N/ALens• Focal Length 4.8mm~120mm• Max. Aperture F1.6 ~ F4.4• Angle of View H: 59.2° ~ 2.4°• Optical Zoom 25x• Focus Control Auto/Manual• Close Focus Distance 100mm~ 1000mmPTZ• Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°,auto flip 180°• Manual Control Speed Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s• Preset Speed Pan: 500° /s; Tilt: 500° /s• Presets 300• PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan• Speed Setup Human-oriented focal Length/ speed adaptation• Power up Action Auto restore to previous PTZ and lens status after power failure• Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period• Protocol DH-SD, Pelco-P/D (Auto recognition)Video• Resolution 1080P(1920×1080)/720P(1280×720)• Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P• Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (switchable)• Day/Night Auto(ICR) / Color / B/W• OSD Menu Support• Backlight Compensation BLC / HLC / WDR (120dB)• White Balance Auto,ATW,Indoor,Outdoor,Manual• Gain Control Auto / Manual• Noise Reduction Ultra DNR (2D/3D)• Digital Zoom 16x• Flip 180°• Privacy Masking Up to 24 areasCertifications• CE: EN55032/EN55024/EN50130-4• FCC: Part15 subpartB,ANSI C63.4- 2014• UL: UL60950-1+CAN/CSA C22.2,No.60950-1Interface• Video Interface 1• Audio Interface 1 channel in• RS485 1• Alarm 2/1Electrical• Power Supply AC24V/1.5A(±10%)• Power Consumption 13W,23W (Heater on)Environmental• Operating Conditions -40°C ~ 60°C (-40°F ~ +140°F) / Less than 90% RH• Ingress Protection IP67• Vandal Resistance IK10Construction• Casing Metal• Dimensions ?186.0(mm) x 253(mm)• Net Weight 2.5kg(5.51lb)• Gross Weight 4.5kg(9.92lb)Accessories• PFA151;• PFA150;• PFB303S;• PFA120;• PFB300C;• PFA140.
