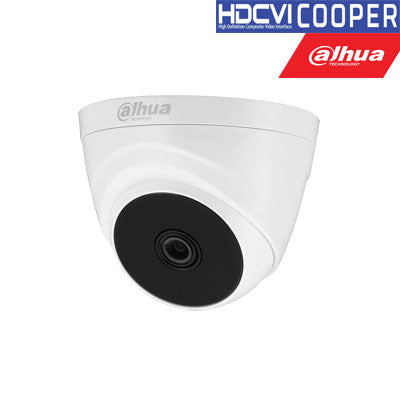

HD-CVI kamera HAC-T1A21P

Features:
• Max. 30fps@1080P• HD and SD output switchable• 2.8mm fixed lens• Max. IR length 20m, Smart IR• DC12V

Technical Specifications:
Camera• Image Sensor 1/2.7" CMOS• Effective Pixels 1920(H)×1080(V), 2MP• Scanning System Progressive• Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s• Minimum Illumination 0.04Lux/F1.85, 30IRE, 0Lux IR on• S/N Ratio More than 65dB• IR Distance Up to 20m (66feet)• IR On/Off Control Auto / ManualLens• Lens Type Fixed lens / Fixed iris• Mount Type Board-in• Focal Length 2.8mm• Max Aperture F1.85• Angle of View H: 93°• Focus Control N/A• Close Focus Distance 800mm (500mm, 2000mm)• Pan/Tilt/Rotation Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360°Video• Resolution 1080P (1920×1080)• Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P• Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)• Day/Night Auto (ICR) / Manual• OSD Menu Multi-language• BLC Mode BLC / HLC / DWDR• WDR DWDR• Gain Control AGC• Noise Reduction 2D• White Balance Auto / Manual• Smart IR Auto / ManualCertifications• CE (EN55032, EN55024, EN50130-4)• FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)Interface• Audio Interface N/AEelectrical• Power Supply 12V DC ±30%• Power Consumption Max. 2.3W (12V DC, IR on)Environmental• Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH• Start up should be done at above -40°C (-40°F)• Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RHIngress Protection & Vandal• Resistance NAConstruction• Casing Plastic• Dimensions 85mm×85mm×69mm(3.35"×3.35"×2.72")• Net Weight 0.09kg (0.20lb)• Gross Weight 0.13kg (0.27lb)
