HiSmart

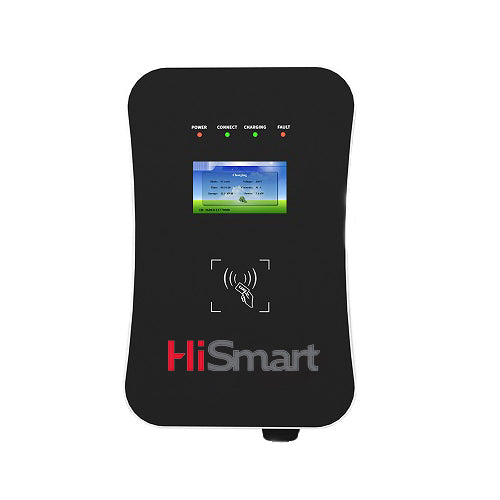

Electric Car Charging Station, Type 2, 22kW, 32A, 3-phase
€680,00
VAT included. Shipping calculated at checkout.
SKU: EV200092 · EAN: 9990000200092
In stock — ships in 1–2 business days- Free EU shipping over €49
- 24-month warranty included
- 14-day hassle-free returns
Charging station for electric cars Mode3, 22kW, 32A, 3-phase, with Type 2 connector, without charging cable, wallbox, RCD, IP65 (for indoor and outdoor conditions), IK08.
Features: The charging station allows charging up to 22kW.Type 2 connector, European standard. Compatible with any vehicle using an appropriate cable or adapter (Type 1 Yazaki, Type 2 Mennekes, Tesla, Chademo, CCS combo etc.).
Specifications: Max. charging current: 32A (3-phase).Max. charging power: 22kW (3-phase).Input: 380V +/- 20V AC (3-phase), 32A (max.), 50 / 60Hz.Output: IEC 62196, Type2 (European), Mennekes, 7 contacts.Charging control: Plug & Play / RFID card.Screen: 4.3-inch LCD screen.4 LED indicators: voltage / connection / charging / error.Housing material: metal plate.Front panel: tempered glass.Screen color: black.Operating temperature: -30°C-55°C.Operating humidity: <95% RH.Storage temperature -40°C to + 75°C.Safety class: IP65 (adapted to indoor and outdoor conditions), IK08.Protection: RCD (Residual Current Device).Protection against: overheating, over-voltage, overload, under-voltage, short circuit,surge, earth-leakage; ground protection.Cooling: natural.Dimensions: 410 x 260 x 164 mm.Weight: <12 kg.
Warranty: 24 months.
Features: The charging station allows charging up to 22kW.Type 2 connector, European standard. Compatible with any vehicle using an appropriate cable or adapter (Type 1 Yazaki, Type 2 Mennekes, Tesla, Chademo, CCS combo etc.).
Specifications: Max. charging current: 32A (3-phase).Max. charging power: 22kW (3-phase).Input: 380V +/- 20V AC (3-phase), 32A (max.), 50 / 60Hz.Output: IEC 62196, Type2 (European), Mennekes, 7 contacts.Charging control: Plug & Play / RFID card.Screen: 4.3-inch LCD screen.4 LED indicators: voltage / connection / charging / error.Housing material: metal plate.Front panel: tempered glass.Screen color: black.Operating temperature: -30°C-55°C.Operating humidity: <95% RH.Storage temperature -40°C to + 75°C.Safety class: IP65 (adapted to indoor and outdoor conditions), IK08.Protection: RCD (Residual Current Device).Protection against: overheating, over-voltage, overload, under-voltage, short circuit,surge, earth-leakage; ground protection.Cooling: natural.Dimensions: 410 x 260 x 164 mm.Weight: <12 kg.
Warranty: 24 months.
