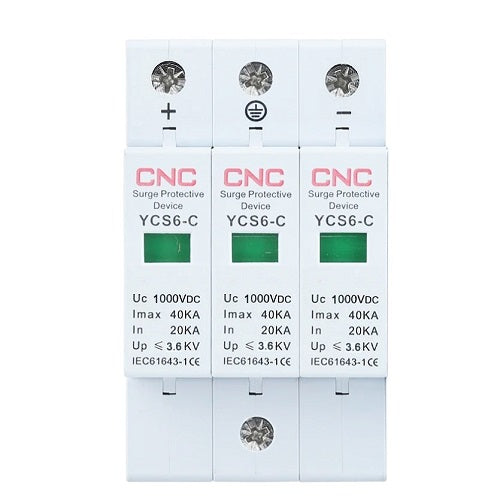

DC Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC

Name: DC Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC
Brand: CNC
SKU: NV821747
Price: 41.22 EUR
Availability: InStock

€45,30 €41,22

VAT included. Shipping calculated at checkout.

SKU: NV821747 · EAN: 6942108715148

In stock — ships in 1–2 business days

Free EU shipping over €49
24-month warranty included
14-day hassle-free returns

Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC
Features: Widely used in induction thunder and influence of direct lightning or other transient overvoltage surge protection, to protect DC power system, photovoltaic system, wind power generation and other industrial DC power equipment safe to use.Standards: IEC 61643-1, CE.
Specifications: Number of contacts: 3.Class: C.Maximum continuous operating voltage (Uc): 1000V DC.Maximum discharge current (Imax): 40 kA.Nominal discharge current (In): 20 kA.Voltage protection level (Up): < / = 3.6 kV.Response time: <25 ns.Frequency: 50/60 Hz.Operating temperature: -40°C to +85°C.Relative humidity (at 25°C): <95%.Installation: on DIN rail (35mm).Wires cross-section: 4-6 mm².Dimensions: 54 x 90 x 67 mm.
Warranty: 24 months.
