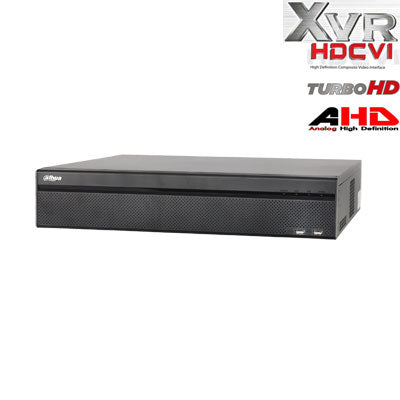

Chan. Pentabrid standalone XVR5816S

Features:
• Embedded processor• H.264+/H.264 dual-stream video compression• Support HDCVI/AHD/TVI/CVBS/IP video inputs• Max 8 channels IP camera inputs, each channel up to 5MP• Max 96Mbps Incoming Bandwidth• Smart Search and Intelligent Video System
Technical Specifications:
System• Main Processor Embedded Processor• Operating System Embedded LINUXDisplay• Interface 2 HDMI, 1 VGA, 1 TV• Resolution 1920×1080, 1280×1024, 1280×720, 1024×768Multi-screen Display• 1/4/8/9/16/25• OSD Camera title, Time, Video loss, Camera lock, Motion detection, RecordingVideo Detection and Alarm• Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips• Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis• Alarm input 16• Relay Output 6• Tracking Trigger Event N/APlayback and Backup• Playback 1/4/9/16• Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second), Smart search• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera,Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom• Backup Mode USB Device/NetworkStorage• Internal HDD 8 SATA Ports, up to 8TB capacity for each disk• HDD Mode Single• eSATA 1 PortAuxiliary Interface• 4 USB Ports (2 USB 2.0 , 2 USB 3.0)• RS232 1 port, for PC communication & Keyboard• RS485 1 Port, for PTZ ControlThird-party Support• Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and moreAudio and Video• HDCVI Camera Input 16 Channel• IP Camera Input 16+8 Channel, each channel up to 5MP• Audio In/Out 16 Audio In, 1 Audio Out• Two-way Talk 1 Mic In, 1 Mic Out, BNCRecording• Compression H.264+/H.264• Resolution 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIFRecord Rate• Main stream: 1080P(1~15fps) 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)• Sub steram:D1/CIF/QCIF(1~15fps)• Bit Rate 1Kbps ~ 6144Kbps Per ChannelRecord Mode• Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss,Tampering), Alarm, Stop• Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 secNetwork• Interface 8CH: 2 RJ-45 Port (1000M)Network Function• HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera,DVR, NVS, etc.)• Max. User Access 128 users• Smart Phone iPhone, iPad, Android• Interoperability ONVIF 2.4.1, CGI ConformantElectrical• Power Supply AC100V-240V, 50/60Hz• Power Consumption <35W (Without HDD)Environmental• Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa• Storage Conditions 0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RHConstruction• Dimensions 2U, 440mm×455mm×95mm (17.3" x 17.9" x 3.7")• Net Weight 6.5kg (14.32 lb) (without HDD)• Gross Weight 9.8kg (21.6lb)• Installation Desktop installation/Rack-mounted
