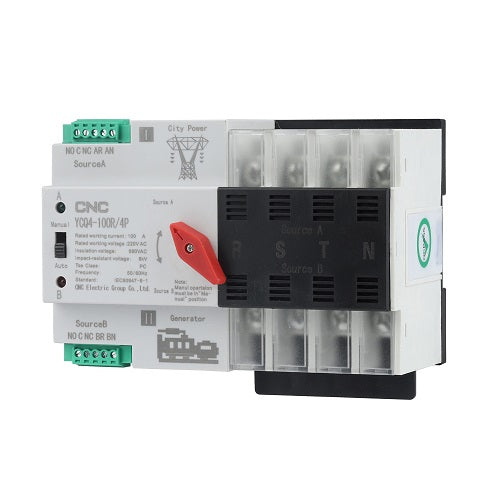

Automatic Transfer Switch CNC 4P 220V 100A
€47,81
€46,61
VAT included. Shipping calculated at checkout.
SKU: NV822478 · EAN: 6942034368548
In stock — ships in 1–2 business days- Free EU shipping over €49
- 24-month warranty included
- 14-day hassle-free returns
Automatic transfer switch YCQ4-100R/4P 220V 100A
Features:Automatic transfer switch 220VAC, 100A for emergency power supply system 50/60Hz, transfer time <50ms.The switch can also be operated manually.The switch complies requirements of low voltage switch gear and control gear specified by IEC 60947-6-1.Compact design, reliable switching, easy installation on a DIN rail.It is widely applicable in various occasions where continuous power failure is not allowed.
Specifications:Voltage: AC220V.Current: 100A.Frequency: 50/60Hz.Number of contacts: 4.Insulation voltage (Ui): AC 690V.Rated voltage (Ue): AC 400V.Rated conditional short-circuit current: 50 kA.SCPD (fuse): RT16-00-63A.Rated impulse withstand voltage: 8 kV.Main voltage: AC 220V.Auxiliary circuit: AC 220V.Contact transfer time: <50 ms.Operating transfer time: <50ms.Return transfer time: <50ms.Off- time: <50ms.Installation: on a DIN rail.Dimensions: 100x142x76 mm.Mechanical life: 5000 times.Electrical life: 2000 times.Weight: 656g.
Warranty: 24 months.
Features:Automatic transfer switch 220VAC, 100A for emergency power supply system 50/60Hz, transfer time <50ms.The switch can also be operated manually.The switch complies requirements of low voltage switch gear and control gear specified by IEC 60947-6-1.Compact design, reliable switching, easy installation on a DIN rail.It is widely applicable in various occasions where continuous power failure is not allowed.
Specifications:Voltage: AC220V.Current: 100A.Frequency: 50/60Hz.Number of contacts: 4.Insulation voltage (Ui): AC 690V.Rated voltage (Ue): AC 400V.Rated conditional short-circuit current: 50 kA.SCPD (fuse): RT16-00-63A.Rated impulse withstand voltage: 8 kV.Main voltage: AC 220V.Auxiliary circuit: AC 220V.Contact transfer time: <50 ms.Operating transfer time: <50ms.Return transfer time: <50ms.Off- time: <50ms.Installation: on a DIN rail.Dimensions: 100x142x76 mm.Mechanical life: 5000 times.Electrical life: 2000 times.Weight: 656g.
Warranty: 24 months.
Shipping & delivery
Orders placed before 14:00 EET ship the same business day. EU delivery in 2–5 business days with tracking included.
Warranty & returns
Every product carries the full 24-month EU consumer warranty. You may return any item within 14 days of delivery for a full refund.
Compatibility
Check the compatibility list in the description above. Not sure? Contact us with your device model and we will confirm before you order.
