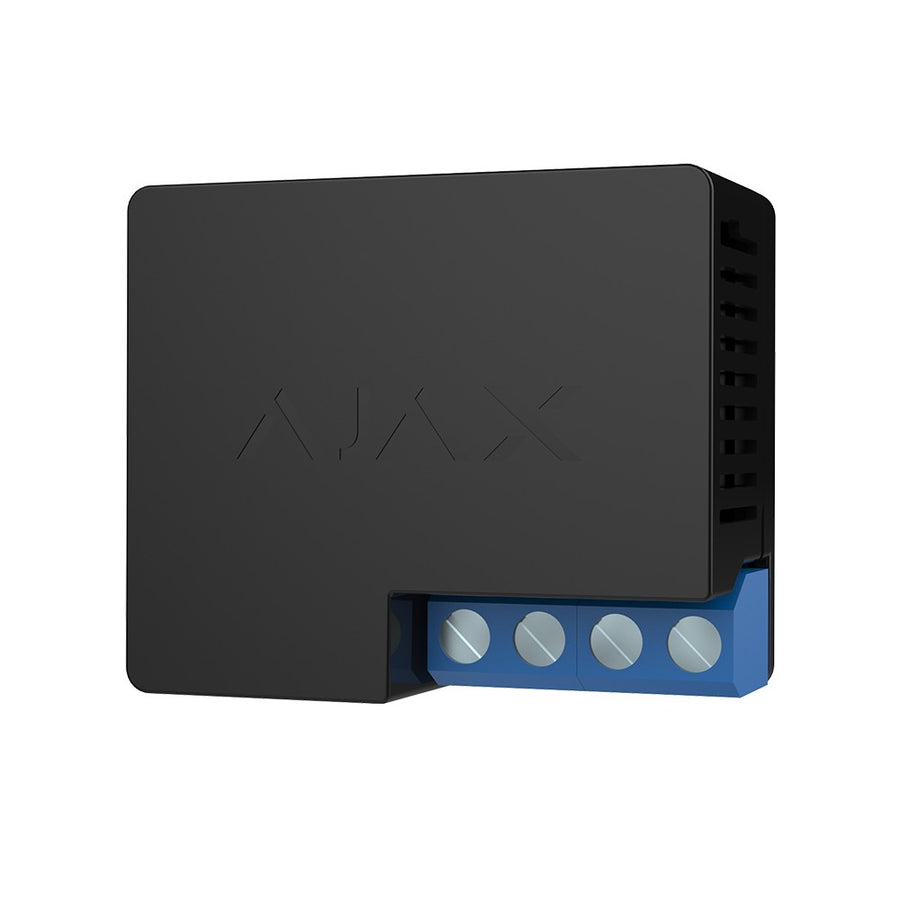

Ajax WallSwitch Power relay

Turns household appliances on/off and tracks energy consumption through a mobile app.
Maximum performanceWorks up to 1,000 meters from Ajax Hub in open space or across several floors of a business center. Allows for remotely switching connected devices on and off through the app. Calculates energy consumption and shows data in the app.
Protection from intruders and failureProtected from power surges and overheating. Response from the controller can be checked every 12-300 seconds.
Effortless operationUses a remote antenna for better reception. Operating voltage range: 110-230V. Remembers settings after power failure.
Simple professional-level installationInstalled directly in the wall plate
Technical specificationsUse: IndoorCompatibility: Works only with Ajax HubActuator: RelayRelay service life: 200,000 switchingsPower supply voltage: 110-230 V AC±10% 50/60 HzVoltage protection for 230 V electrical network: Max - 264 V, min - 161 VVoltage protection for 110 V electrical network: Max - 126 V, min - 77 VMaximum load current: 13 AMaximum current protection: Yes (13 A)Allowed power (resistive load at 230 V): Up to 3 kWAllowed power (resistive load at 110 V): Up to 1.5 kWElectric meter option: Yes (statistics available)Monitoring of power consumption parameters: Yes (current, voltage, power consumption)Allowed operating ambient temperature: From 0°C (+32°F) to +64°C (+147.2°F)Maximum temperature protection: Yes (65°C (+149°F) inside the wall plate)Communication protocol: Jeweller (868.0-868.6 MHz)Radio signal power: 25 mWCommand response time: Less than a secondMaximum distance between detector and central unit: Up to 1,000 m (3,300 ft) (in open area)Power consumption in standby mode: Less than 1 WhIngress protection: IP20Operating humidity: Less than 75%Dimensions: 38x25x18 mm (1.49x0.98x0.70 in)Dimensions for mounting in the wall plate: Ø > 50, depth 55 mm (2.17 in)
ComponentsRemote controllerManualInstallation set
