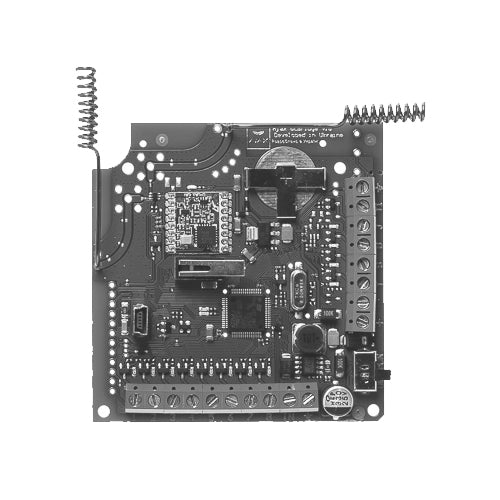

Ajax module ocBridge Plus

Ajax ocBridge Plus - module for integration with wired and hybrid security systems.Ajax ocBridge Plus turns any wired security system into a wireless one by giving it access to the advantages of Ajax detectors, while antenna diversity and frequency hopping provide additional protection from radio noise or jamming. Maximum performance: Jeweller wireless technology allows for expanding to a network of devices up to 2,000 meters away in open space or across several floors of a business center. Supports 8 security areas and 4 service areas. Can work with up to 100 devices simultaneously. Protection from intruders and failure: Uses authentication to protect against fraud. Jamming detection, frequency-hopping. Antenna diversity and frequency hopping provide additional security. Uses an encrypted connection. Effortless operation: Detectors are customizable using a radio channel. Securely maintains a history of all events. Pings every 12-300 seconds to monitor the system. Simple professional-level installation: Connects to a third-party security system using 12 transistor outputs. Connects to a PC through USB and is customizable through a Windows configuration tool. The quality of the connection and device detection area can be tested remotely. Technical specification: Use: IndoorRadio signal power: 25 mWCommunication protocol: Jeweller (868.0-868.6 MHz)Maximum distance between detector and ocBridge: Up to 2,000 m (6,552 ft) (in open area).Maximum number of connected devices: 100Detection of jamming: YesDetector performance monitoring: YesHistory of alarms and service events: YesConnection of external antenna: YesSoftware update: YesNumber of wired outputs/inputs: 13 (8+4+1)/1Power supply type: +/- connectors; miniUSB (only when configuring ocBridge)Power supply voltage: DC 8 – 14 V; miniUSB 5 V (only to configure the system).Operating temperature range: From -20°C (-4°F) to +50°C (+140°F)Operating humidity: Up to 90%Dimensions: 95x92x18 mm (3.74x3.62x0.70 in) (with antennas)Components: CR2023 battery (pre-installed, for backup)Manual
