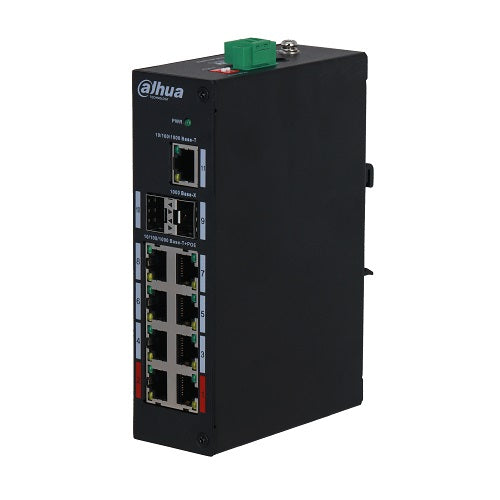

8-Port PoE Switch PFS3211-8GT-120

Features:
• 11-port unmanaged gigabit switch with 8-port PoE.• 8-pin simultaneous PoE power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time.• All-giga ports.• Wide working temperature.• Long distance PoE.• The red port supports the IEEE802.3bt and the Hi-PoE standards.• Intelligent PoE controls over power consumption and offers real-time monitoring.• BT 90W.• Supports wall-mount installation.• Supports IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3az, IEEE802.3x standards.• Conforms to IEEE802.3af and IEEE802.3at power supply standard.
Technical Specifications:
• Model PFS3211-8GT-120.• Ethernet Port: RJ-45 8x 10/100/1000Mbps (PoE); SFP 2x 1000Mbps (uplink); RJ-45 1x 10/100/1000 Mbps (uplink).• PoE Power consumption: Full load = 120W, Idling: 5W.• Power consumption management: yes.• PoE PIN Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-).• Communication standards: IEEE802.3/ IEEE802.3u/ IEEE802.3X/ IEEE 802.3az/ IEEE 802.3ab.• PoE protocol: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt.• Switching capacity: 33 Gbps.• Packet forwarding rate: 16.37 Mpps.• Packet buffer memory: 1.75 Mbit.• Long distance PoE: 250 m long distance PoE transmission.• Application humidity: 5%~95% RH.• Power supply: 48V - 57V DC.• Lightning Protection Common Mode: 4 kV.• Differential mode: 2 kV.• ESD Protection Air discharge: 8 kV.• Contact discharge: 6 kV.• Working temperature: -30°C~65°C.• Wall-mount installation.• Anti-theft lock hole.• Weight: 0.67 kg.• Dimensions(W×D×H): 150 mm x 110 mm x 42 mm.
