HiSmart
5G / LTE / CBRS 2x2MIMO Antenna, 1.7-3.8GHz, 2x 18dBi
€87,76
€79,86
VAT included. Shipping calculated at checkout.
SKU: TV992263 · EAN: 9990000992263
In stock — ships in 1–2 business days- Free EU shipping over €49
- 24-month warranty included
- 14-day hassle-free returns

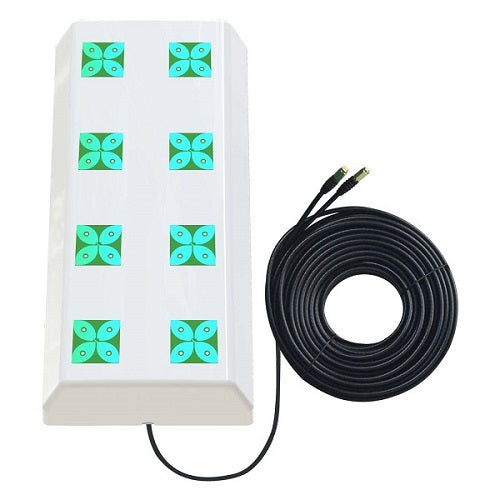

LTE/5G/CBRS 2x2 MIMO antenna, 1710-2690MHz / 3300-3800MHz, 2x 18dBi, SMA-Male connector
Features: Panel design, dual slant polarization antenna,1710-2690MHz / 3300-3800MHz, 2x 18dBi.Application: LTE, 3G/4G/5G, CBRS, cellular networks, DAS (Distributed Antenna Systems), Wi-Fi IEEE802.11b/g/n.With two 15m long cables.Lightning protection: DC grounding.Environmental friendly.
Technical specification:Frequency range: 1710-2690MHz / 3300-3800MHz.Gain: 2x 18dBi.VSWR: <2.Impedance: 50 ohms.Max. power per port: 50W.Connector: SMA-male.Cables: RG58 copper x2.Cable length: about 15m.Mounting: on a pole: diameter 30-50 mm.Material: PC, ABS.Dimensions: 485 x 200 x 66 mm.Polarization: dual slant +/-45°.Color: white.Weight: 2.5kg.Operating temperature: -40°C~ +70°C.Operating humidity: up to 95%RH.
Warranty: 24 months.
Features: Panel design, dual slant polarization antenna,1710-2690MHz / 3300-3800MHz, 2x 18dBi.Application: LTE, 3G/4G/5G, CBRS, cellular networks, DAS (Distributed Antenna Systems), Wi-Fi IEEE802.11b/g/n.With two 15m long cables.Lightning protection: DC grounding.Environmental friendly.
Technical specification:Frequency range: 1710-2690MHz / 3300-3800MHz.Gain: 2x 18dBi.VSWR: <2.Impedance: 50 ohms.Max. power per port: 50W.Connector: SMA-male.Cables: RG58 copper x2.Cable length: about 15m.Mounting: on a pole: diameter 30-50 mm.Material: PC, ABS.Dimensions: 485 x 200 x 66 mm.Polarization: dual slant +/-45°.Color: white.Weight: 2.5kg.Operating temperature: -40°C~ +70°C.Operating humidity: up to 95%RH.
Warranty: 24 months.
