HiSmart

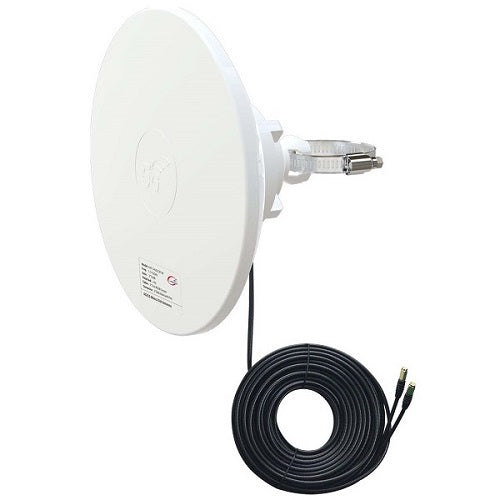

5G / LTE / CBRS 2x2 MIMO Dish Antenna, 1.7-4.2GHz, 2x 12dBi, IP67
€56,16
€51,12
VAT included. Shipping calculated at checkout.
SKU: TV992249 · EAN: 9990000992249
In stock — ships in 1–2 business days- Free EU shipping over €49
- 24-month warranty included
- 14-day hassle-free returns
LTE/5G/CBRS 2x2 MIMO antenna, 1710-2690MHz / 3300-4200MHz, 2x 12dBi, IP67
Features: Dish design, dual slant polarization antenna, 1710-2690MHz / 3300-4200MHz, 2x 12dBi.Application: LTE, 5G, CBRS, cellular networks, DAS (Distributed Antenna Systems), Wi-Fi IEEE802.11b/g/n.With two 15m long cables.Lightning protection: DC grounding.Environmentally friendly.
Technical specification:Frequency range: 1710-2690MHz / 3300-4200MHz.Gain: 2x 12 dBi.VSWR: <1.5.Impedance: 50 ohms.Max. power per port: 50W.Connector: 2x SMA-male.Cables: RG58 copper x2.Cable length: about 15m.Antenna diameter: 120 mm.Mounting: on a pole: diameter 30-50 mm.Material: PC, ABS.Dimensions: 200 x 200 x 94 mm.Polarization: dual slant +/-45°.Color: white.Weight: 1.34kg.Operating temperature: -40°C~ +70°C.Operating humidity: up to 95%RH.
Warranty: 24 months.
Features: Dish design, dual slant polarization antenna, 1710-2690MHz / 3300-4200MHz, 2x 12dBi.Application: LTE, 5G, CBRS, cellular networks, DAS (Distributed Antenna Systems), Wi-Fi IEEE802.11b/g/n.With two 15m long cables.Lightning protection: DC grounding.Environmentally friendly.
Technical specification:Frequency range: 1710-2690MHz / 3300-4200MHz.Gain: 2x 12 dBi.VSWR: <1.5.Impedance: 50 ohms.Max. power per port: 50W.Connector: 2x SMA-male.Cables: RG58 copper x2.Cable length: about 15m.Antenna diameter: 120 mm.Mounting: on a pole: diameter 30-50 mm.Material: PC, ABS.Dimensions: 200 x 200 x 94 mm.Polarization: dual slant +/-45°.Color: white.Weight: 1.34kg.Operating temperature: -40°C~ +70°C.Operating humidity: up to 95%RH.
Warranty: 24 months.
Shipping & delivery
Orders placed before 14:00 EET ship the same business day. EU delivery in 2–5 business days with tracking included.
Warranty & returns
Every product carries the full 24-month EU consumer warranty. You may return any item within 14 days of delivery for a full refund.
Compatibility
Check the compatibility list in the description above. Not sure? Contact us with your device model and we will confirm before you order.
